DF9.9/15 “K6” (’06) MODEL 10-11

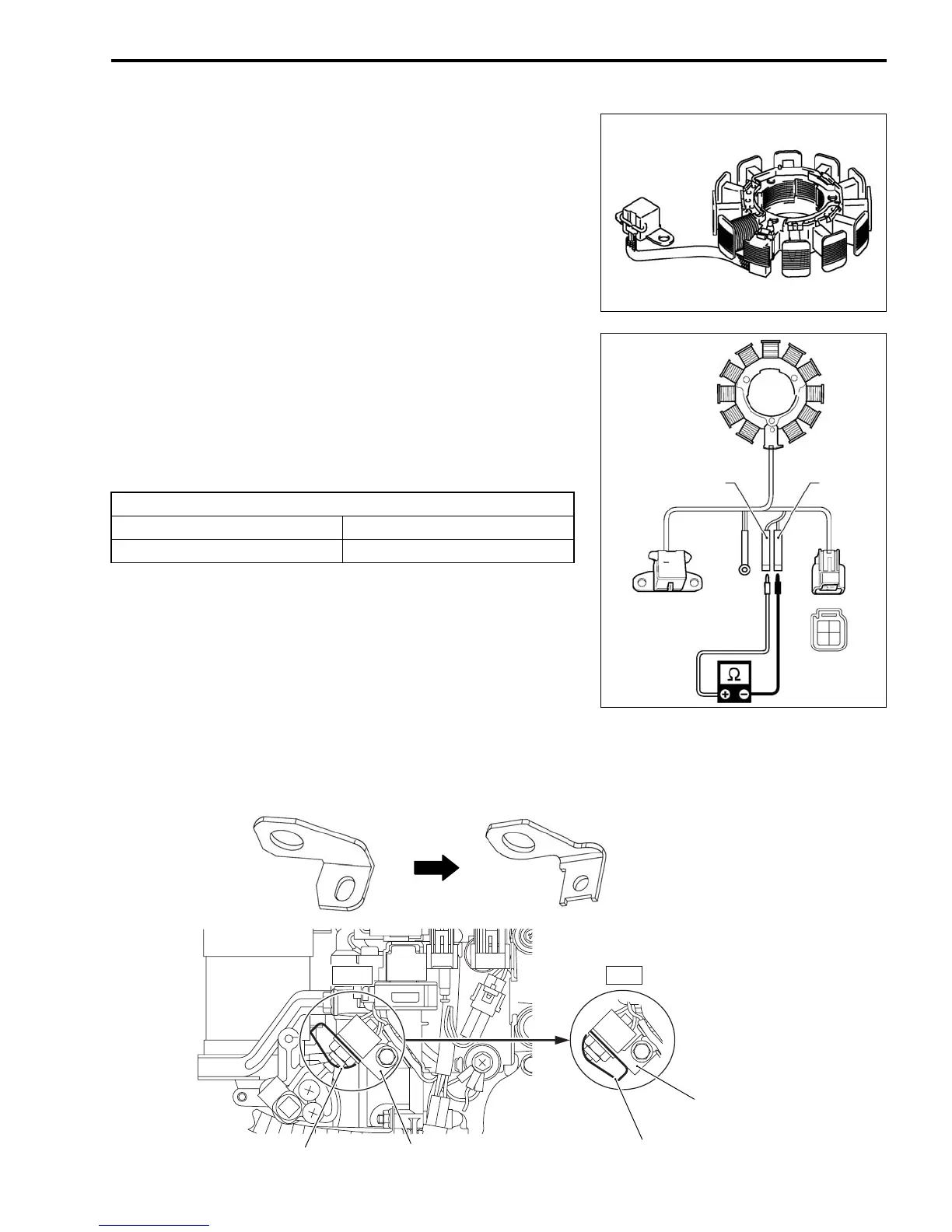

BATTERY CHARGE COIL
For DF9.9E/DF15E (Electric Start Model)
The battery charge coil out put for DF9.9E and DF15E has been
changed from 12 V 80 W to 12 V 120 W.
BATTERY CHARGE COIL RESISTANCE
09930-99320: Digital tester
Tester range: Ω (Resistance)
1. Disconnect the battery charge coil wires from the rectifier.
2. Connect tester probe to battery charge coil lead wires as
shown.
Coil resistance:
0.9 – 1.3 Ω {80 W coil: DF9.9/15}
0.3 – 0.4 Ω {120 W coil: DF9.9E/15E/9.9R/15R}
If measurement is out of specification, replace the battery
charge coil.
NEUTRAL SWITCH BRACKET
The neutral switch bracket has been changed in shape.
In accordance with this change, the direction of installation of neutral switch actuator has been changed.
Tester probe connection
Probe Other probe
Red Yellow
Red Yellow
Neutral switch actuator
Neutral switch bracket
Neutral switch actuator
Neutral switch bracket
Late
Early
