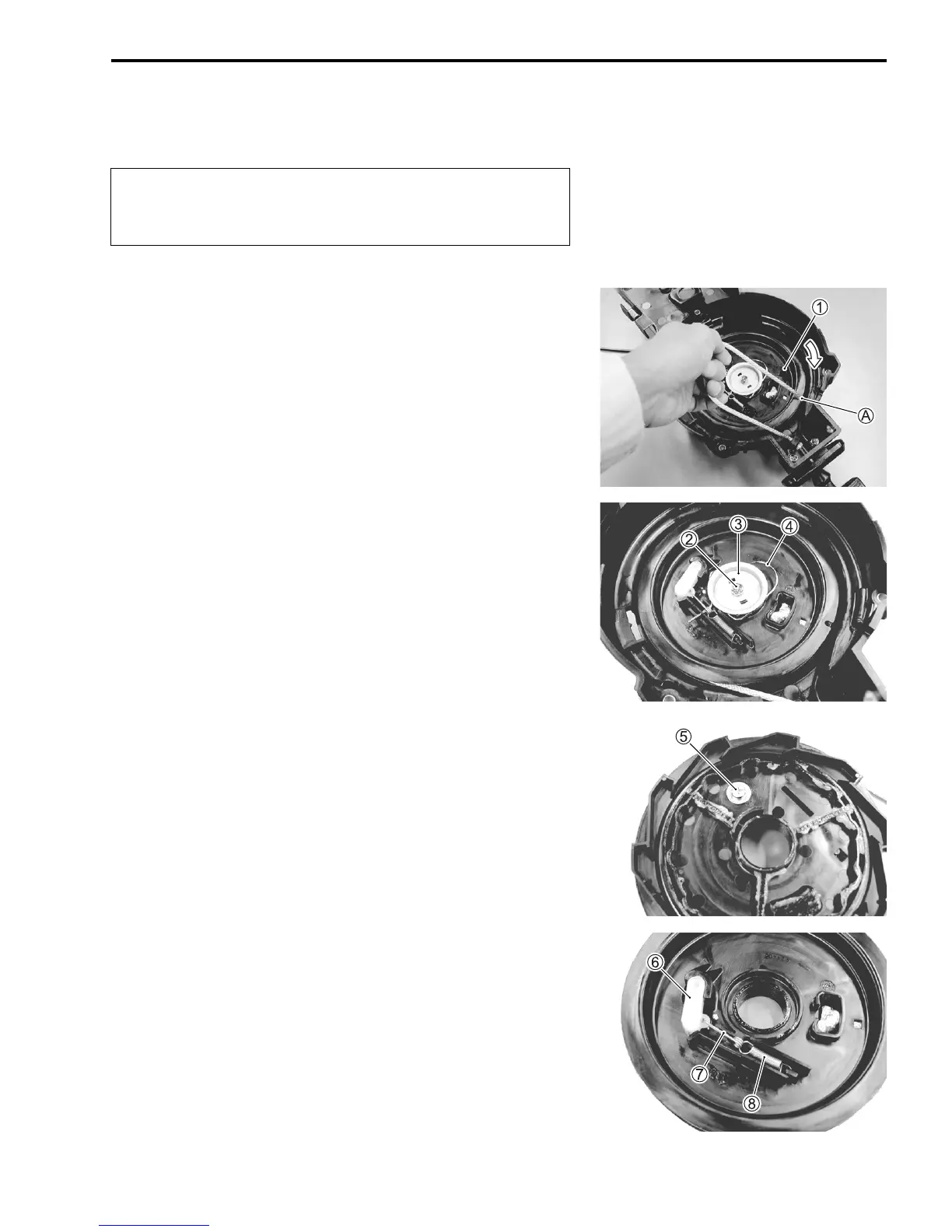

RECOIL STARTER 5-3
DISASSEMBLY
1. Pull the rope out of recoil case and guide the rope into notch
A in the reel, then turn the reel 1 clockwise to release the
coiled tension in the recoil spring.
2. Remove the bolt 2, then remove the friction plate 3 with
the friction spring 4.
3. Remove the reel 1.
4. Remove the screw 5 first, and then take off the ratchet
(pawl) 6, ratchet guide 7 and return spring 8.
Because of the coiled tension in the recoil spring,
wear safety glasses and hand protection when wind-
ing or unwinding this component.
