IGNITION AND ELECTRICAL 3-17
REMOVAL AND INSTALLATION

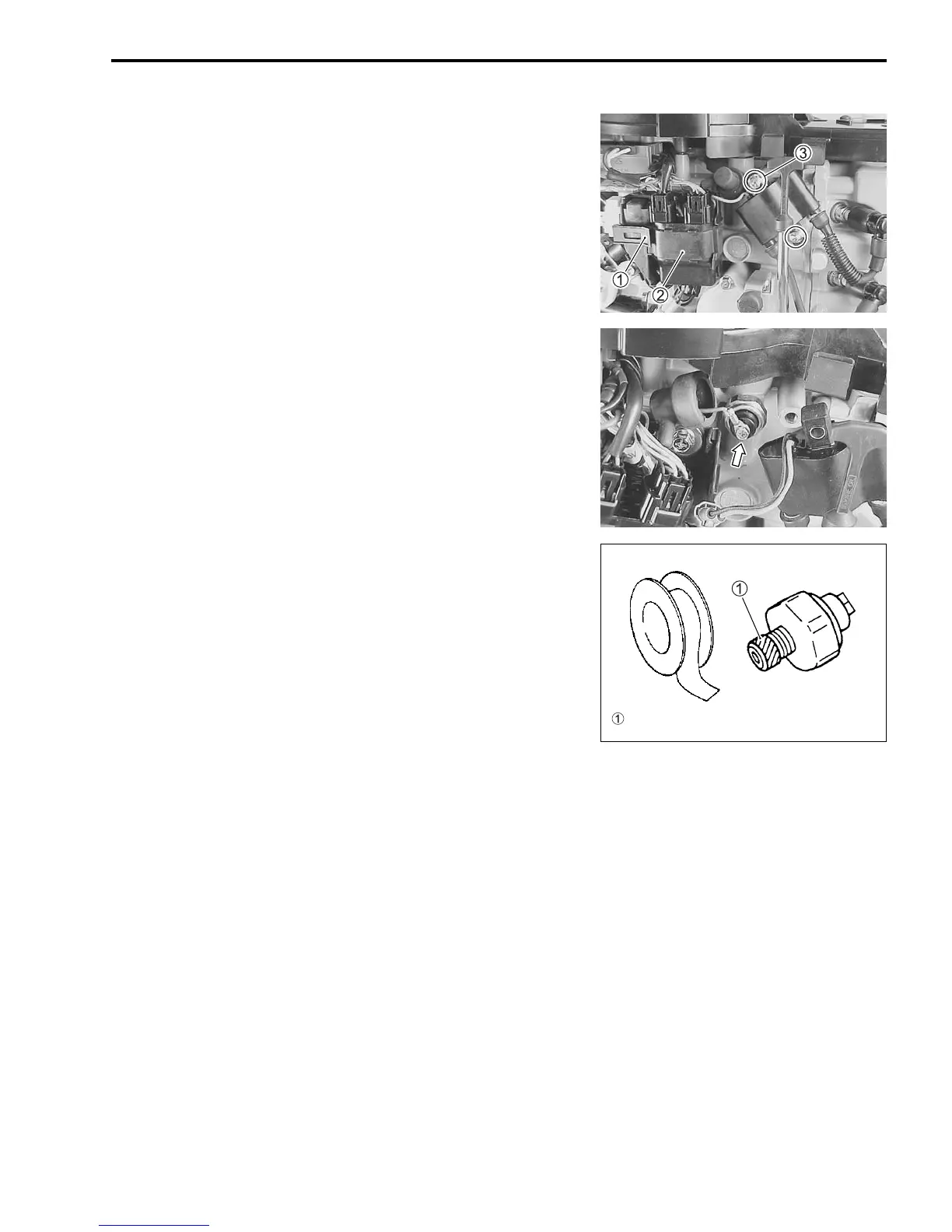

OIL PRESSURE SWITCH
Removal
1. Remove the plate 1 by sliding it upward.
2. Remove CDI unit 2 from electric parts holder.
3. Remove the two (2) bolts 3 securing ignition coil.
4. Loosen screw and disconnect blue lead wire from oil pres-
sure switch.
5. Remove oil pressure switch from cylinder block.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Before installing oil pressure switch, wrap screw threads with
sealing tape then tighten switch to specified torque.
NOTE:
Cut off any excess sealing tape from switch threads before
installation.
Oil pressure switch: 13 N·m (1.3 kg-m, 9.5 lb-ft)
• Start engine and check oil pressure switch for oil leakage.
• Reseal switch if oil leakage is found.
Sealing tape
