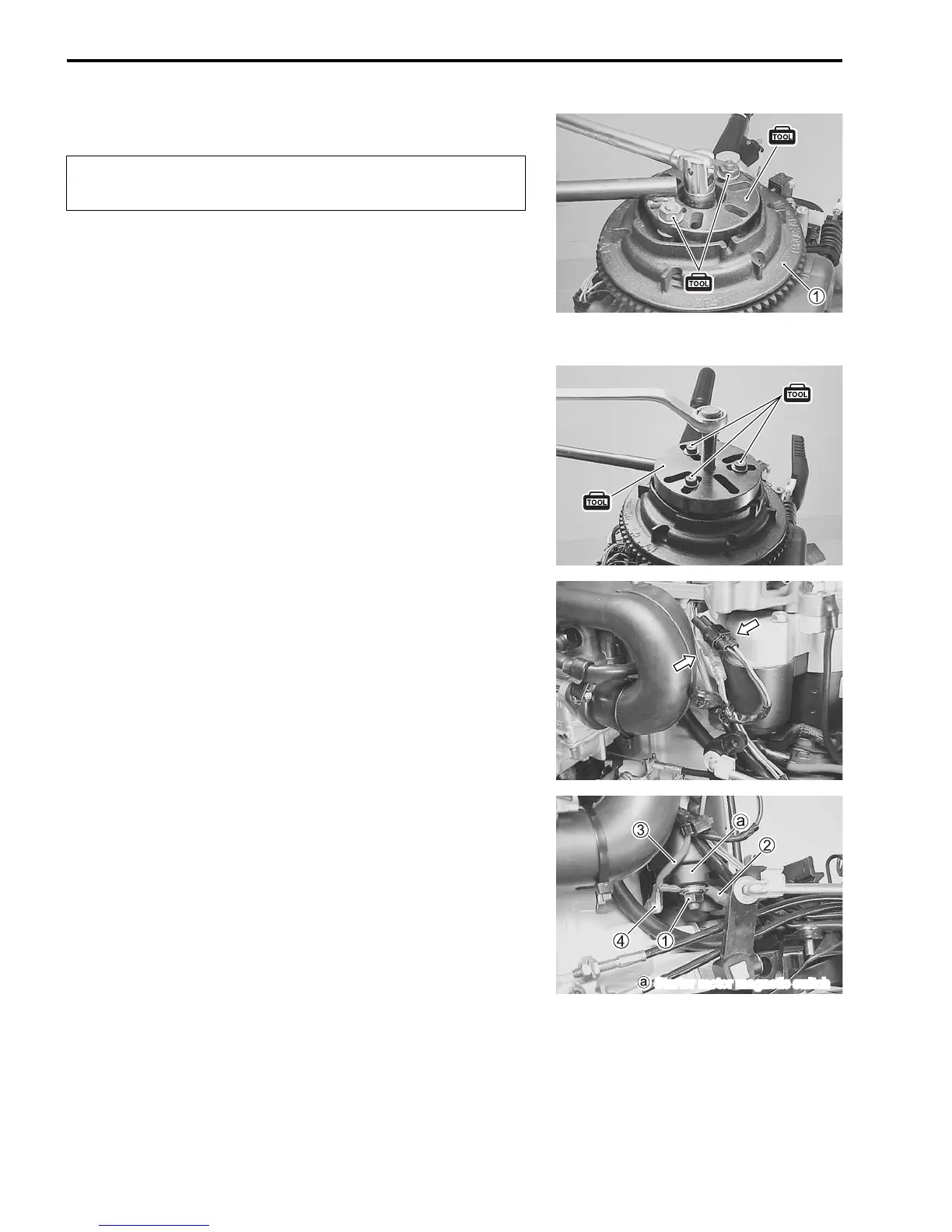

2-10 PERIODIC MAINTENANCE
TIMING BELT
If wear, crack or other damage is found, replace the timing belt.
1. Remove the motor cover.
2. Remove the recoil starter.
3. Remove the side covers.
4. Remove the spark plugs.
5. Remove the flywheel 1. (See page 3-9.)
09930-48720: Flywheel holder
09930-49210: Flywheel holder attachment
09930-39411: Flywheel remover
09930-39210: Flywheel remover attachment bolt
6. Disconnect stop switch lead wire connector.
Disconnect starter button lead wire connector.
7. Remove nut 1 and positive + battery cable 2, positive +
battery charge cable 3 from the magnetic switch “B” termi-
nal of starter motor.
Disconnect the red lead wire 4 from starter motor magnetic
switch “S” terminal.
• Inspect every 200 hours (12 months).
• Replace every 4 years.
=
Starter motor magnetic switch
