PERIODIC MAINTENANCE 2-11

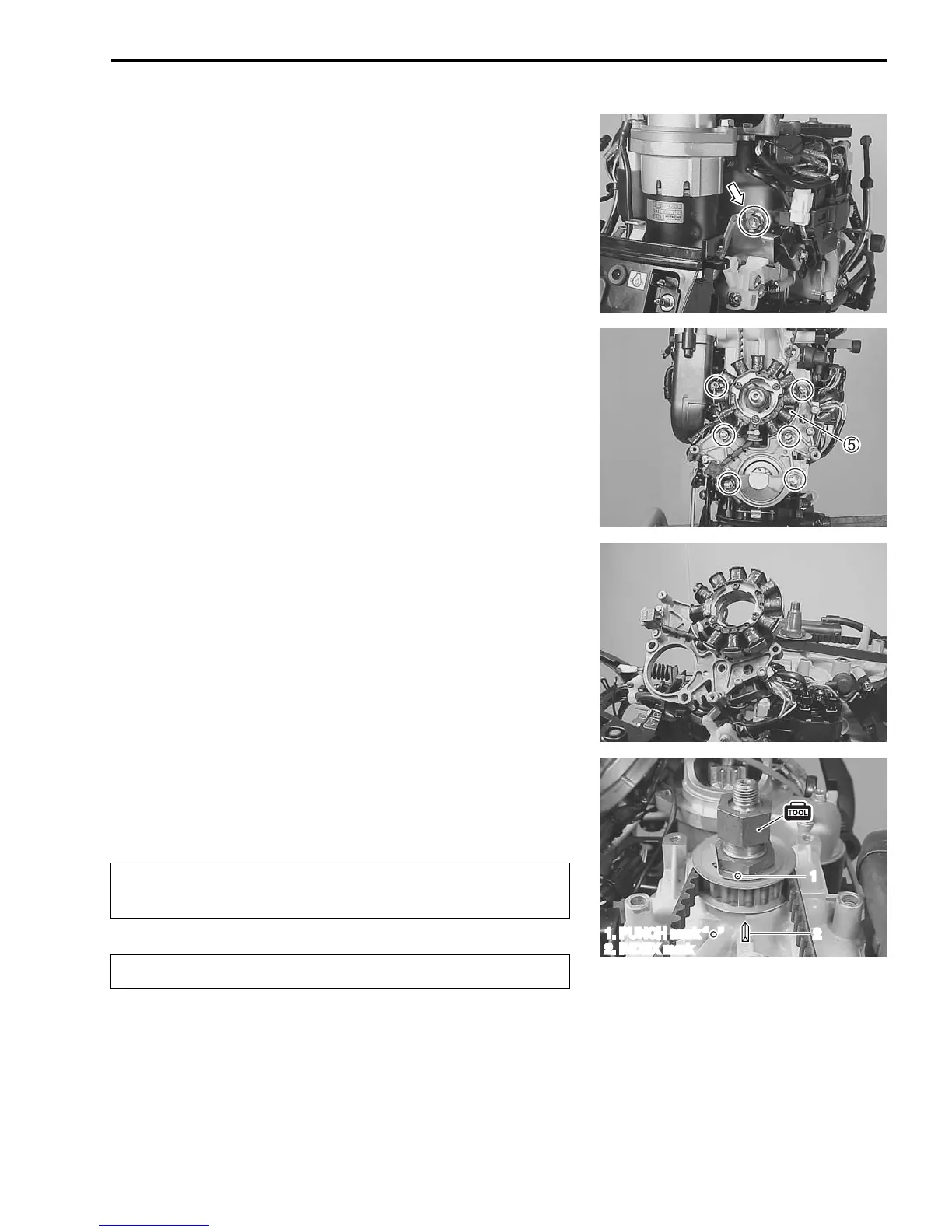

8. Loosen the port side bolt securing starter motor band.
9. Remove the four (4) bolts securing stator base 5.
Remove the two (2) bolts securing starter motor.
10. Lift stator base from cylinder block and lay it on port side as
shown figure.
11. Rotate the crankshaft to align the PUNCH mark on the tim-
ing pulley with the INDEX mark on the cylinder block.
09911-49310: Crankshaft holder
Rotate the crankshaft in the normal running direction
(clockwise) to prevent water pump impeller damage.
Do not rotate the cam pulley with timing belt removed.
1
2
1. PUNCH mark “ ”
2. INDEX mark
