Suzuki DF15 - Disassembly;Assembly

7-6 MID UNIT
DISASSEMBLY/ASSEMBLY

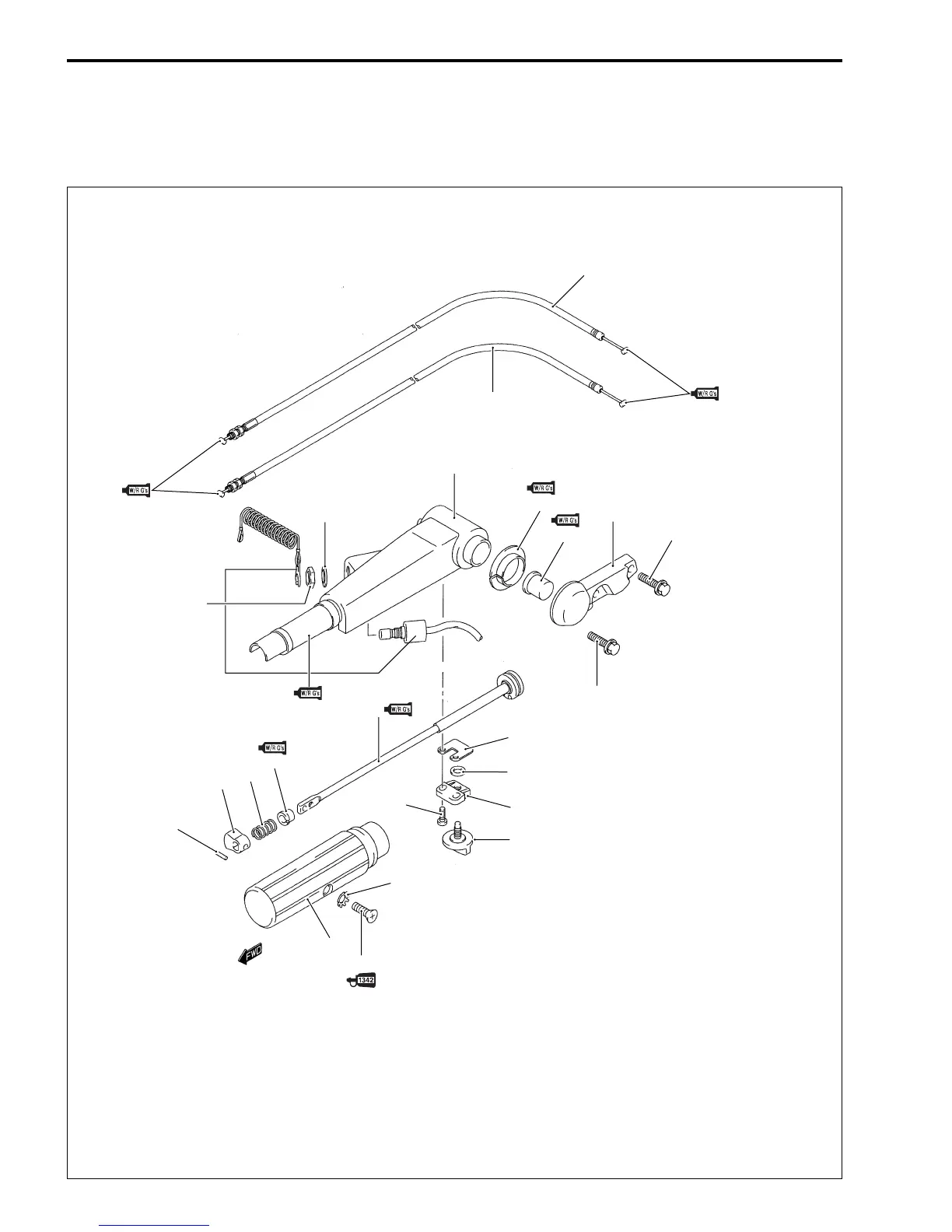

When disassembling or reassembling tiller handle, refer to the
construction diagram below.
13
13
1
21
2
3
4
14
8
12
10
11
16
17
15
5
18
7
19
9
6
14
20
1. Tiller handle
2. Bush (2)
3. Friction rubber
4. Tiller handle cover
5. Grip
6. Handle rod
7. Stopper
8. Plate
9. Bush
10. Support
11. Knob
12. Nut
13. Throttle cable
14. Bolt
15. Screw
16. Screw
17. Washer
18. Pin
19. Spring
20. Emergency stop
switch
21. Washer
