WIRE/HOSE ROUTING 9-11

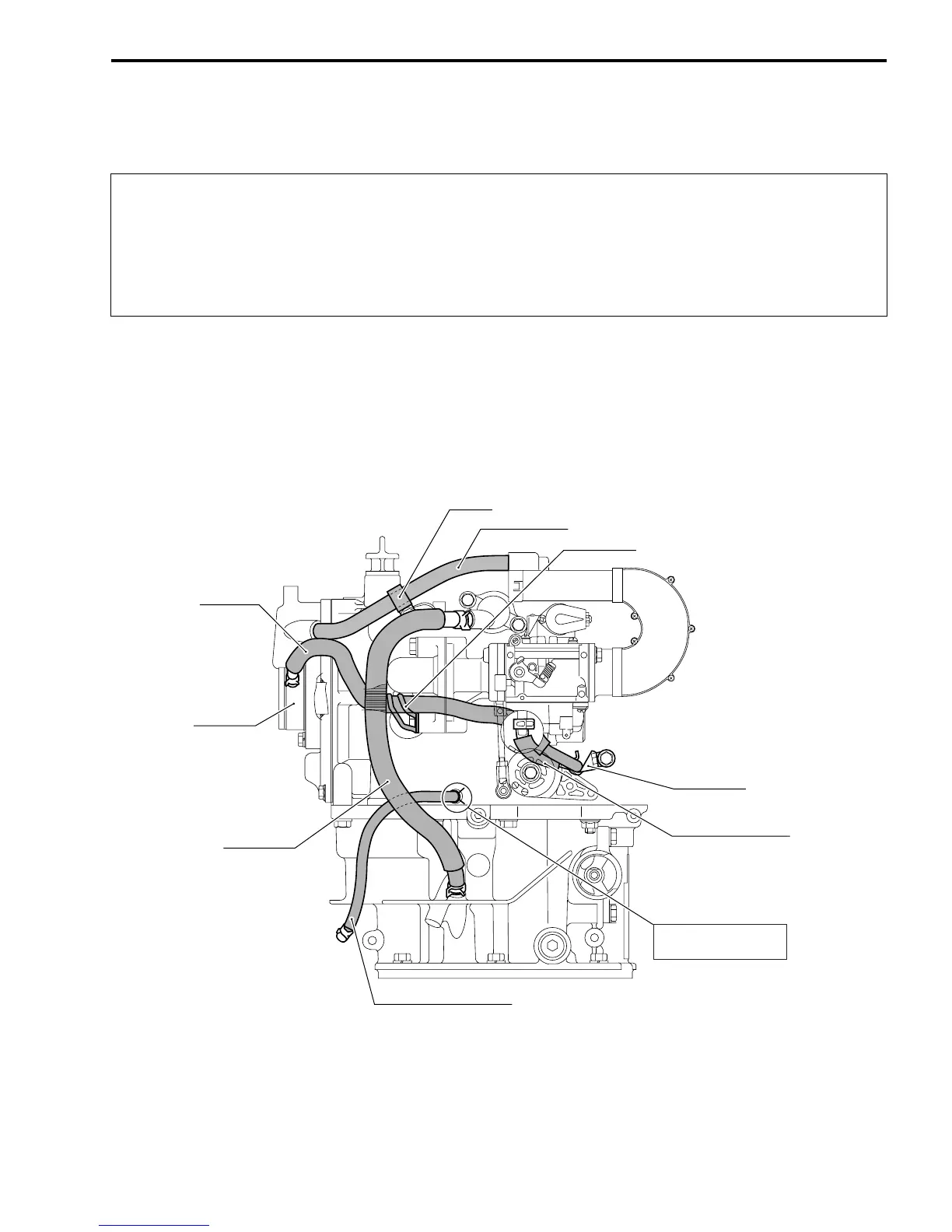

FUEL/WATER HOSE ROUTING
• Do not over-bend (kink) or twist hoses when installing.
• When installing hose clips, position tabs to avoid contact with other parts.
• Check that hoses do not contact rods and levers during either engine operation or standstill.
• Extreme care should be taken not to cut, abrade or cause any other damage on hoses.
• Care should be taken not to cause hoses to be compressed excessively by any clamp when
fitted.
Clamp
Fuel hose/
protector
Breather hose
Hose clamp
Fuel pump
Water hose
Water inspection hose
Hose clamp
Fuel hose/protector
Clip
Set the clip as shown
direction.
To Next Page
