6-24 POWER UNIT
CYLINDER/CRANKSHAFT/PISTON
DISASSEMBLY
Before disassembly
• Remove power unit. (See page 6-2 to 6-6.)
• Remove cylinder head assembly. (See page 6-9.)

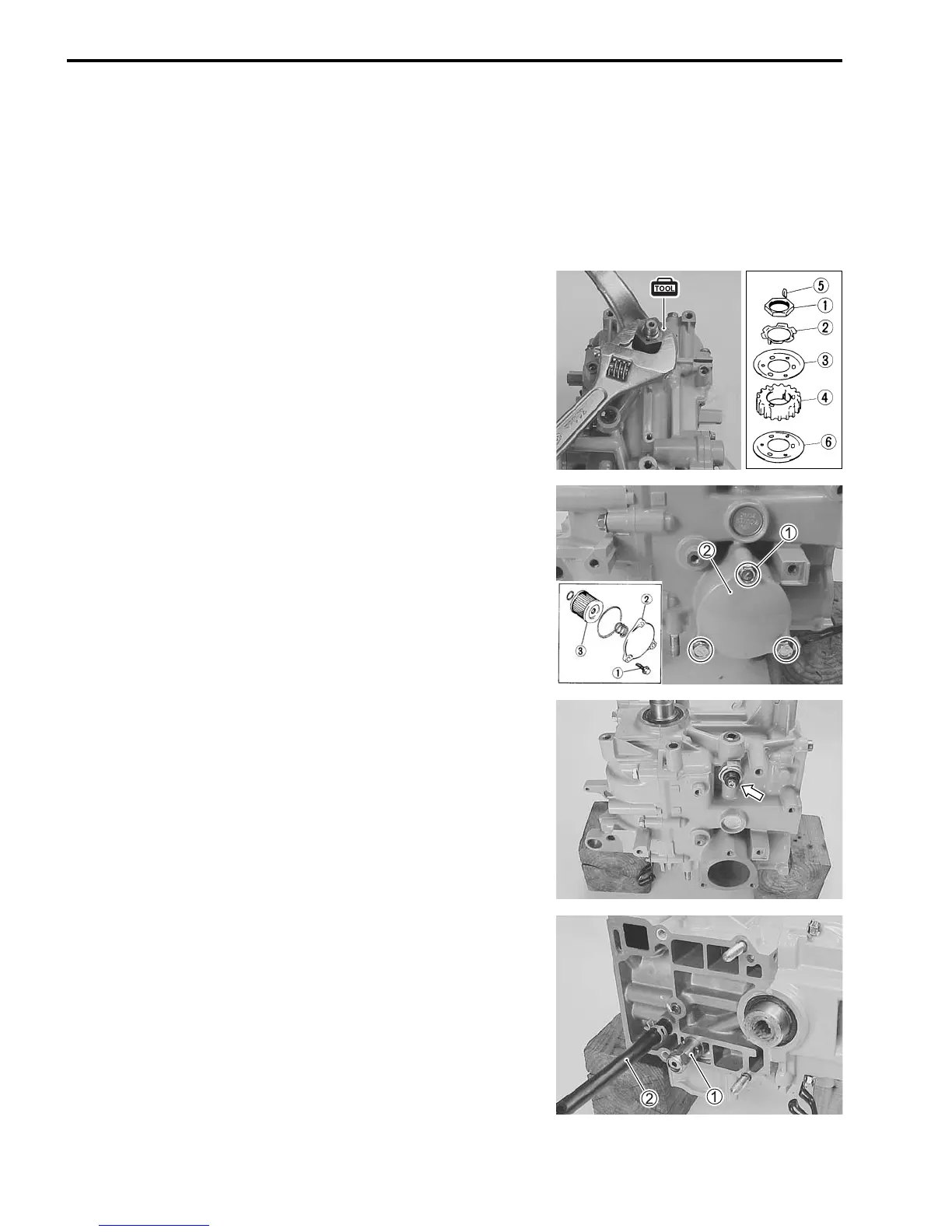

1. Using screw driver, drive locking edges of lock washer 2
downward, and then remove timing pulley nut 1.
09911-49310 : Crankshaft holder
Remove the lock washer 2, upper guide 3, timing pulley
4, key 5 and lower guide 6.
2. Remove screws 1, oil filter cap 2 and oil filter 3.
3. Remove oil pressure switch.
4. Remove oil pressure regulator 1.
Remove oil hose 2.
