4-6 FUEL SYSTEM
Final assembly check
Perform the following checks to ensure proper and safe opera-
tion.
• All parts removed have been returned to their original posi-
tions.
• No fuel leakage is evident when fuel system is pressurized.
(See page 4-3.)

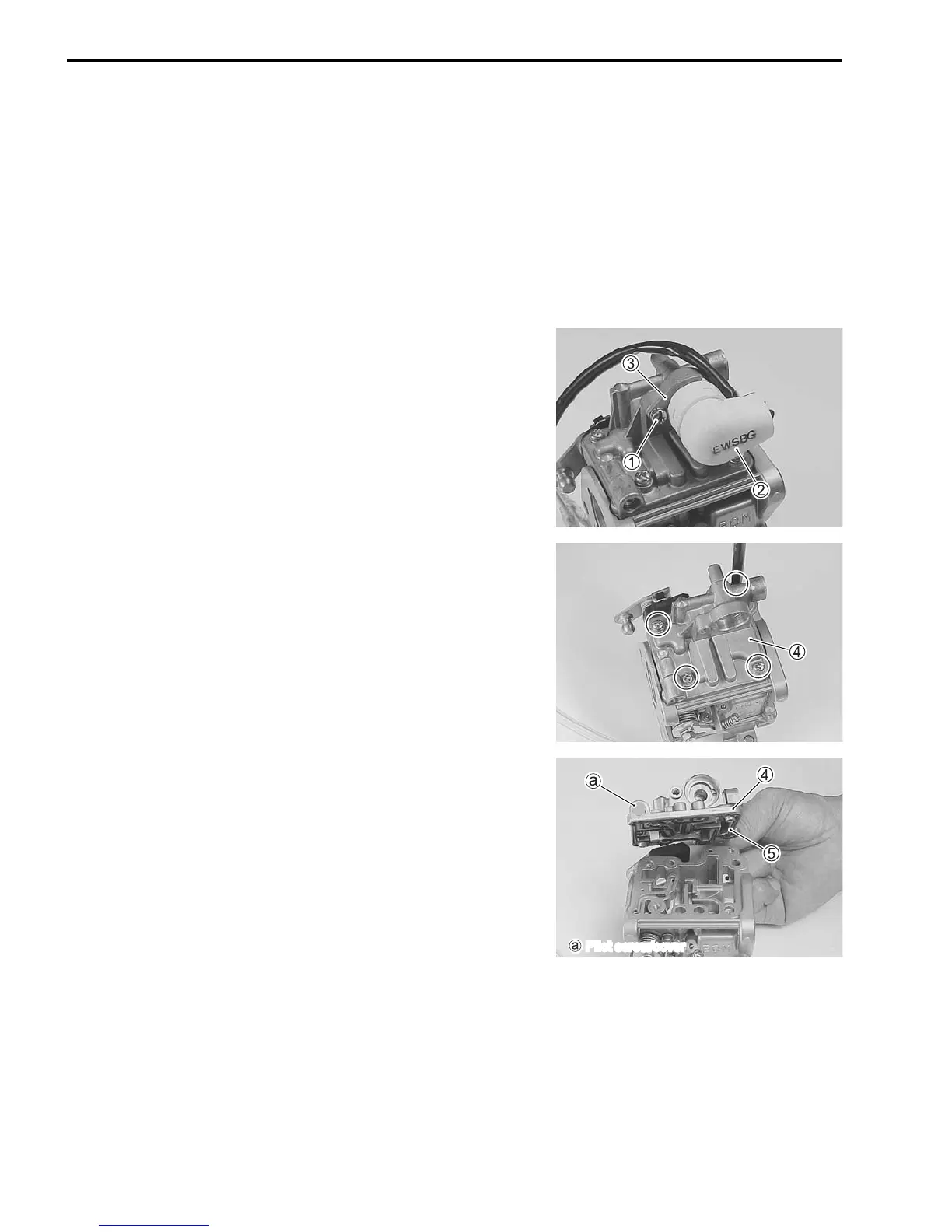

DISASSEMBLY
NOTE:
Carburetor depicted is carburetor with acceleration pump.
1. On remote control model:
Remove the screw 1 and the auto-enrichener 2 with plate
3.
2. Remove the four (4) screws securing the top cover 4, then
remove the cover and rubber gasket 5.
NOTE:
On the carburetor with covered pilot screw:
Do not remove the cover and adjust pilot screw.
=
Pilot screw/cover
