3-26 IGNITION AND ELECTRICAL
INSPECTION

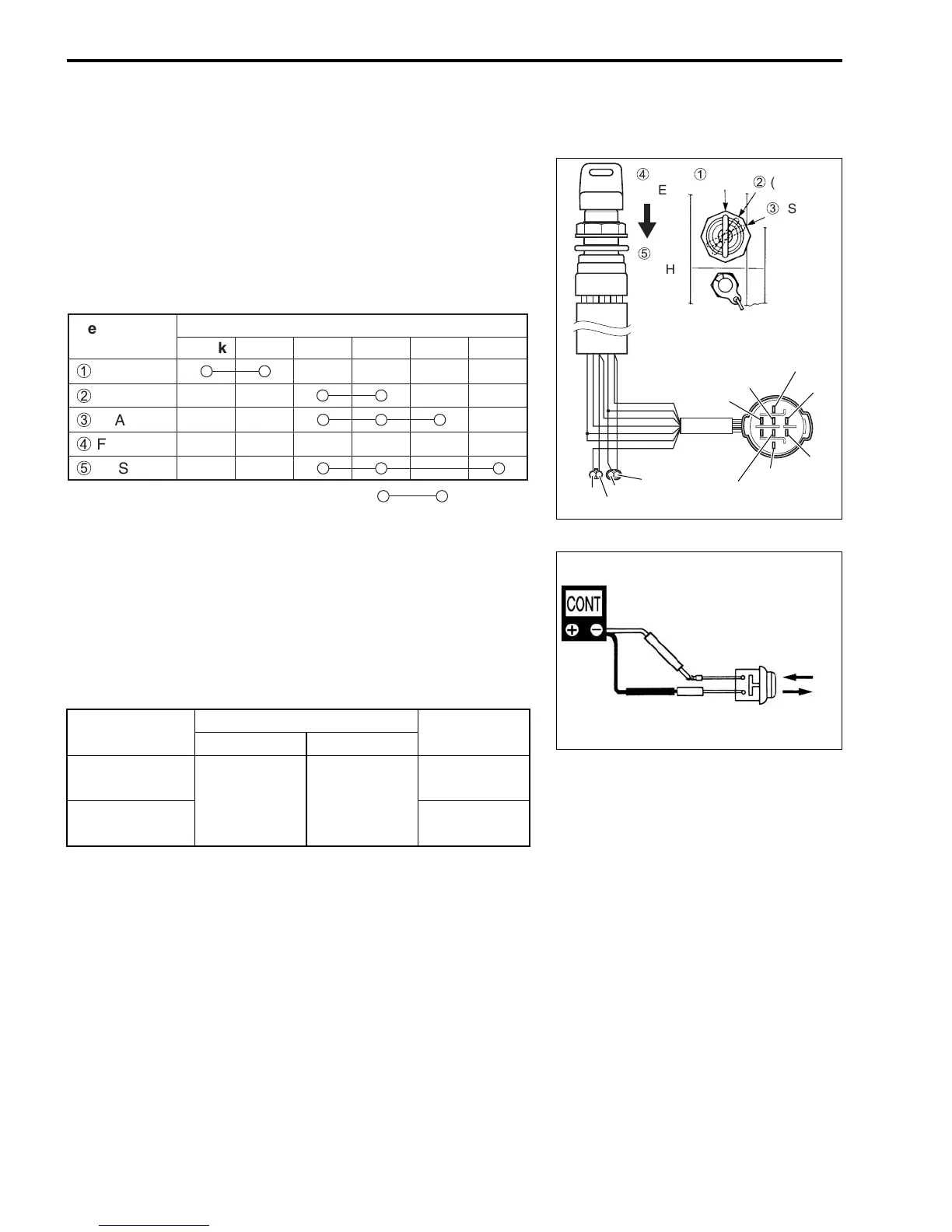

IGNITION SWITCH (Remote control model)
09930-99320: Digital tester
Tester range: (Continuity)
1. Disconnect the ignition switch from remote control wiring
harness.
2. Check continuity between wiring leads at the key positions
shown in the chart.
If out of specification, replace ignition switch.
STARTER BUTTON (Tiller handle model)
09930-99320: Digital tester
Tester range: (Continuity)
1. Disconnect the starter button lead wire.
2. Check continuity between the wiring leads under the condi-
tion shown below.
If out of specification, replace the starter button.
Tester probe connection
Continuity
Probe Other probe
Starter button
not depressed
White/Red Brown
No
Starter button
depressed
Yes
(OFF)
(ON)
!
(START)
"
FREE
#
PUSH
Black
Green
White
Gray
Brown
Orange
Blue
Gr
B
G
Bl
OFF
Key
Position
Switch Lead Wires
ON
!
START
"
FREE
#
PUSH
Black Green White Gray Brown Orange
: Continuity
W/R
Br
Depressed
Not depressed
