Suzuki DF15 - Wire Routing

DF9.9T/TH “K8” (’08) MODEL 12-37

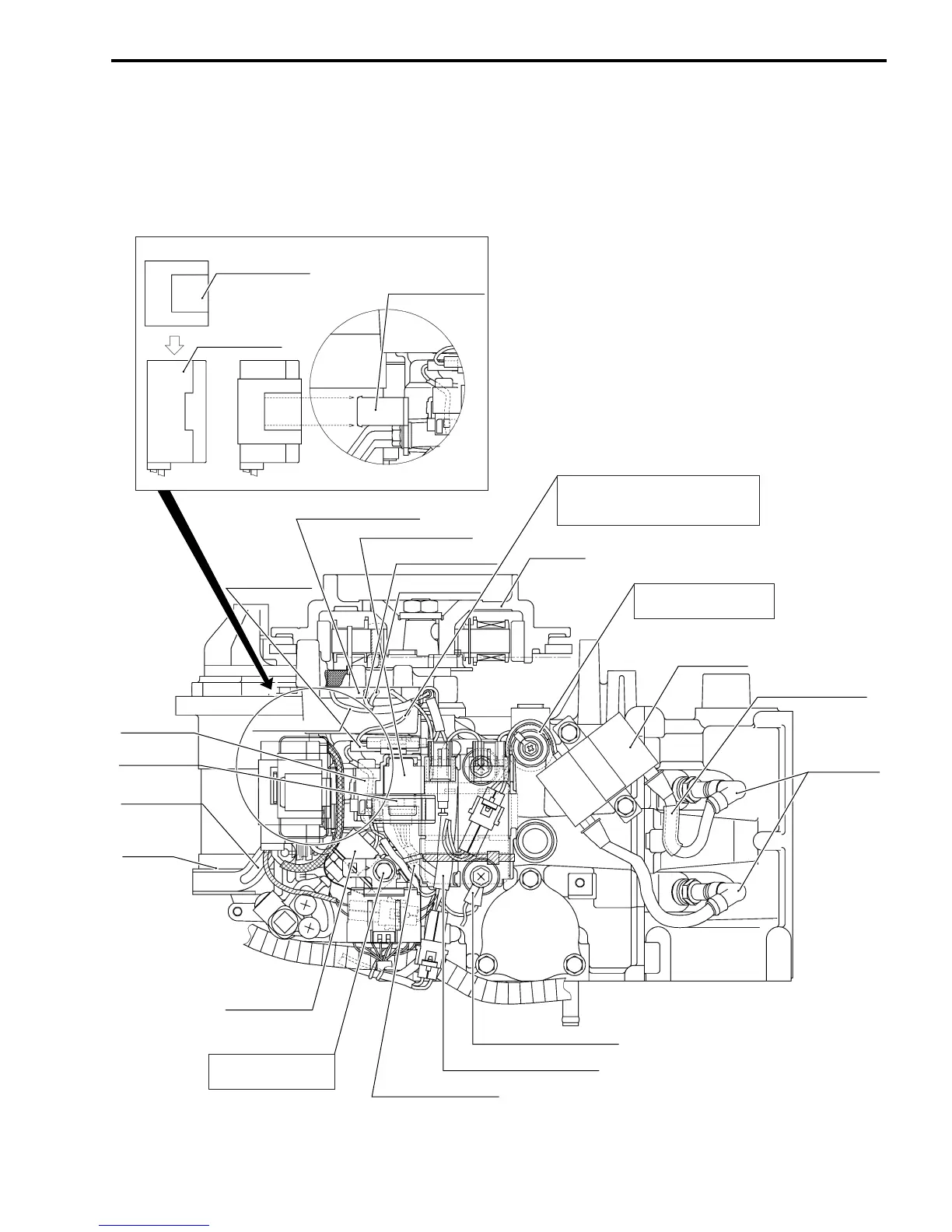

WIRE ROUTING
Cover the oil pressure
switch with cap.
Oil pressure switch
Neutral switch
connector
Rectifier & Regulator
Starter motor relay
Ground lead wire
Yellow lead wire
PT relay assy
Fuse/Case
CDI stopper
plate
PT relay holder
PT relay bracket
Ignition coil
Electric parts holder
Wiring harness assembly
H·T cord protector
Spark plug
cap
Route white lead wire inside Red
lead wire, Yellow lead wire and
ground lead wire.
White lead wire
Apply the THREAD
LOCK “1342”
Switch bracket Bolt
Neutral switch
PT relay GND lead wire
Red lead wire
Starter motor
band
Damper
Flywheel
