IGNITION AND ELECTRICAL 3-9
REMOVAL/INSTALLATION
FLYWHEEL/BATTERY & CONDENSER CHARGE COIL/PULSER COIL
REMOVAL
NOTE:
Motor depicted is electric start model.
[Flywheel]
1. Remove recoil starter. (See page 5-2.)
Before removing electrical parts:
• Disconnect battery cables from battery.
• Remove all spark plug caps from the spark plug.
1
2
4
7
8
6
5
3
10
9
11
12
80 N·m (8.0 kg-m, 58.0 lb-ft)
NOTE:
Clean flywheel and crankshaft
mating surfaces with cleaning
solvent.

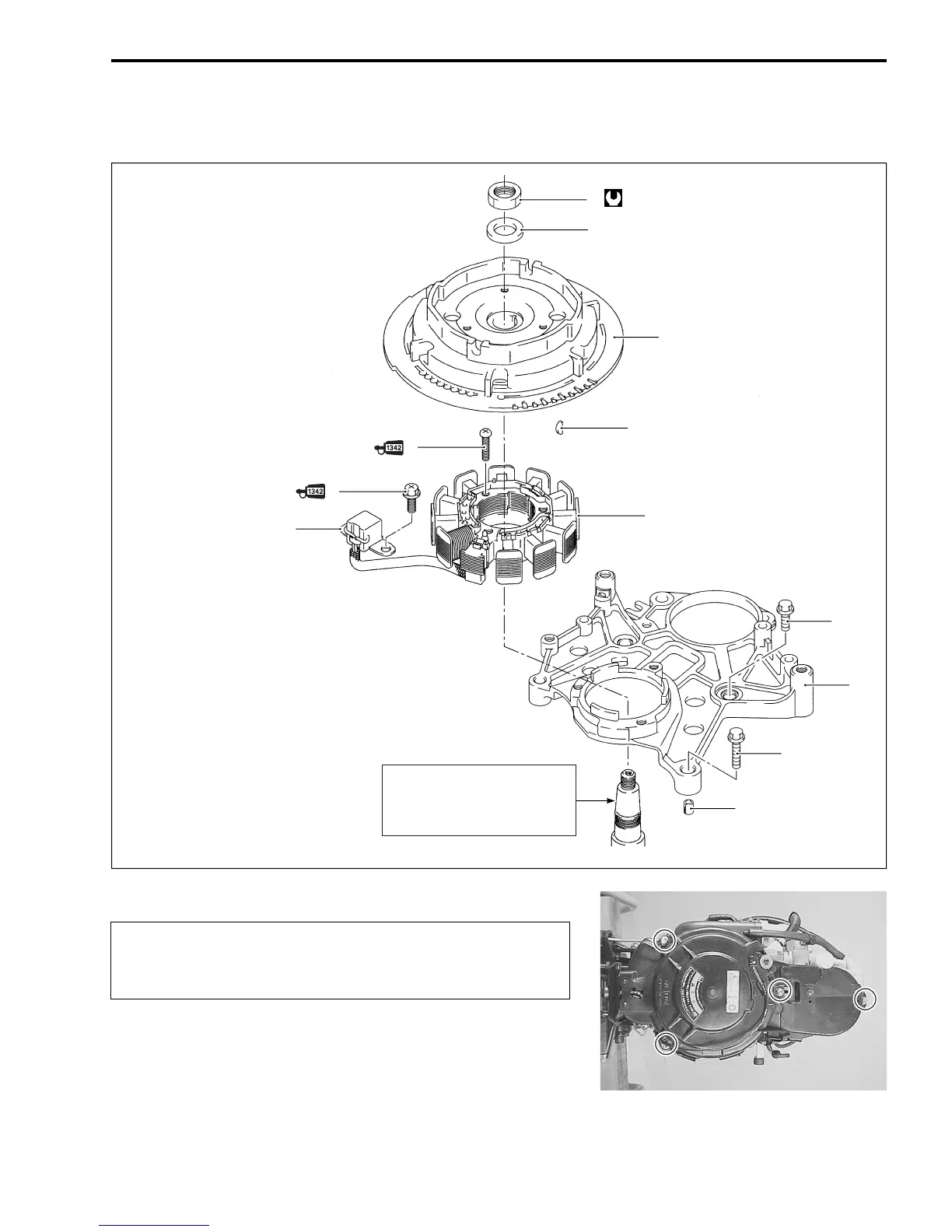

1. Nut
2. Washer
3. Flywheel
4. Key
5. Battery & condenser
charge coil
6. Pulser coil
7. Screw
8. Screw
9. Stator base
10. Bolt
11. Bolt
12. Dowel pin
To Next Page
