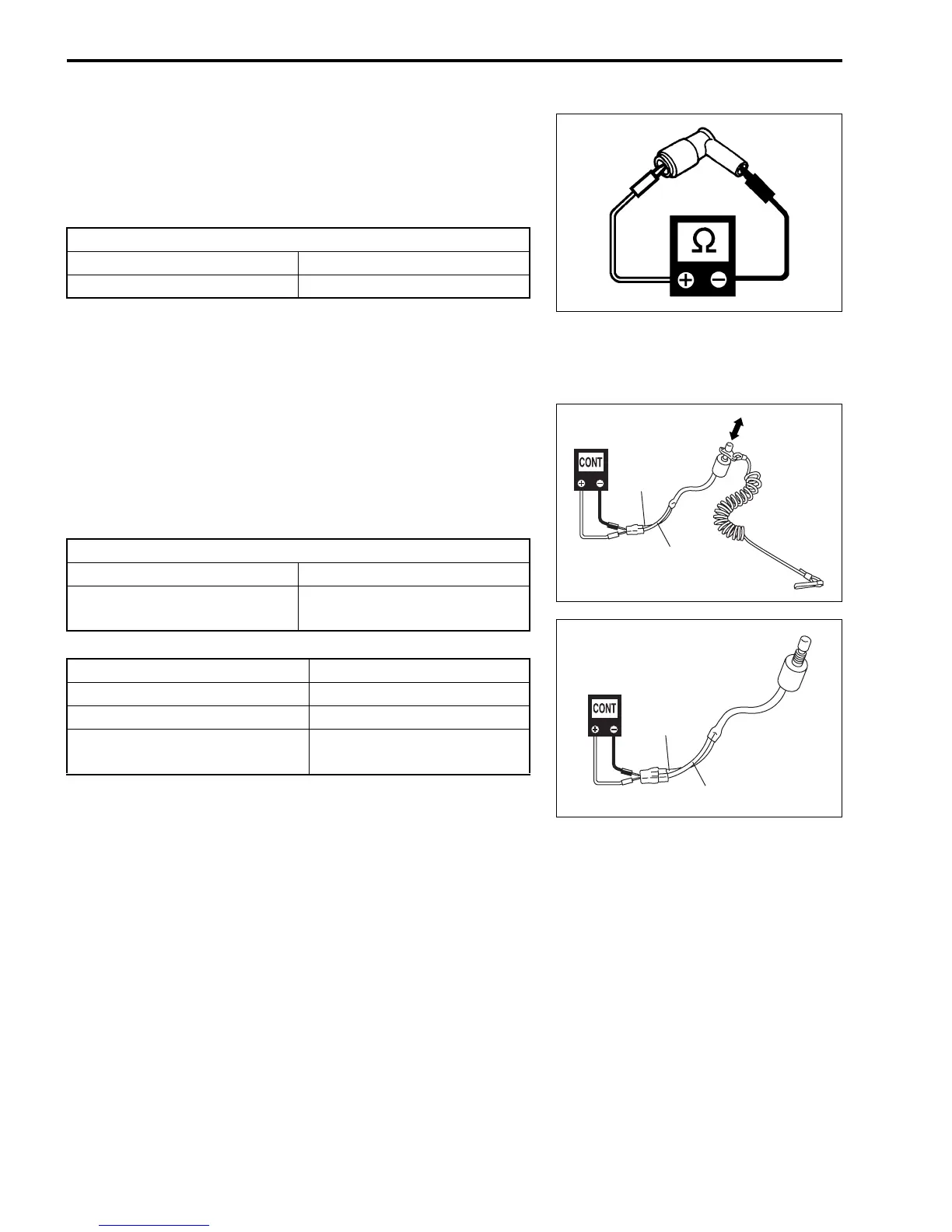

3-8 IGNITION AND ELECTRICAL
SPARK PLUG CAP
09930-99320: Digital tester
Tester range: Ω (Resistance)
Measure the spark plug cap resistance.
Spark plug cap resistance: 8 – 12 kΩ
If measurement is out of specification, replace the spark plug
cap.
EMERGENCY & ENGINE STOP SWITCH
09930-99320: Digital tester
Tester range: (Continuity)
Check continuity/infinity between the wiring leads under the con-
dition shown below.
Note 1: Remote control model
Note 2: Tiller handle model
If out of specification, replace the engine stop switch.
Tester probe connection
Probe Other probe
Cap end Other cap end
Tester probe connection
Probe Other probe
Blue/Red
Green (Note: 1)
Black
Switch condition Continuity
Lock plate IN No
Lock plate OUT Yes
Lock plate IN & button depressed
(Note: 2)
Yes
B
Bl/R
(G)
B
Bl/R (G)
