IGNITION AND ELECTRICAL 3-5
INSPECTION

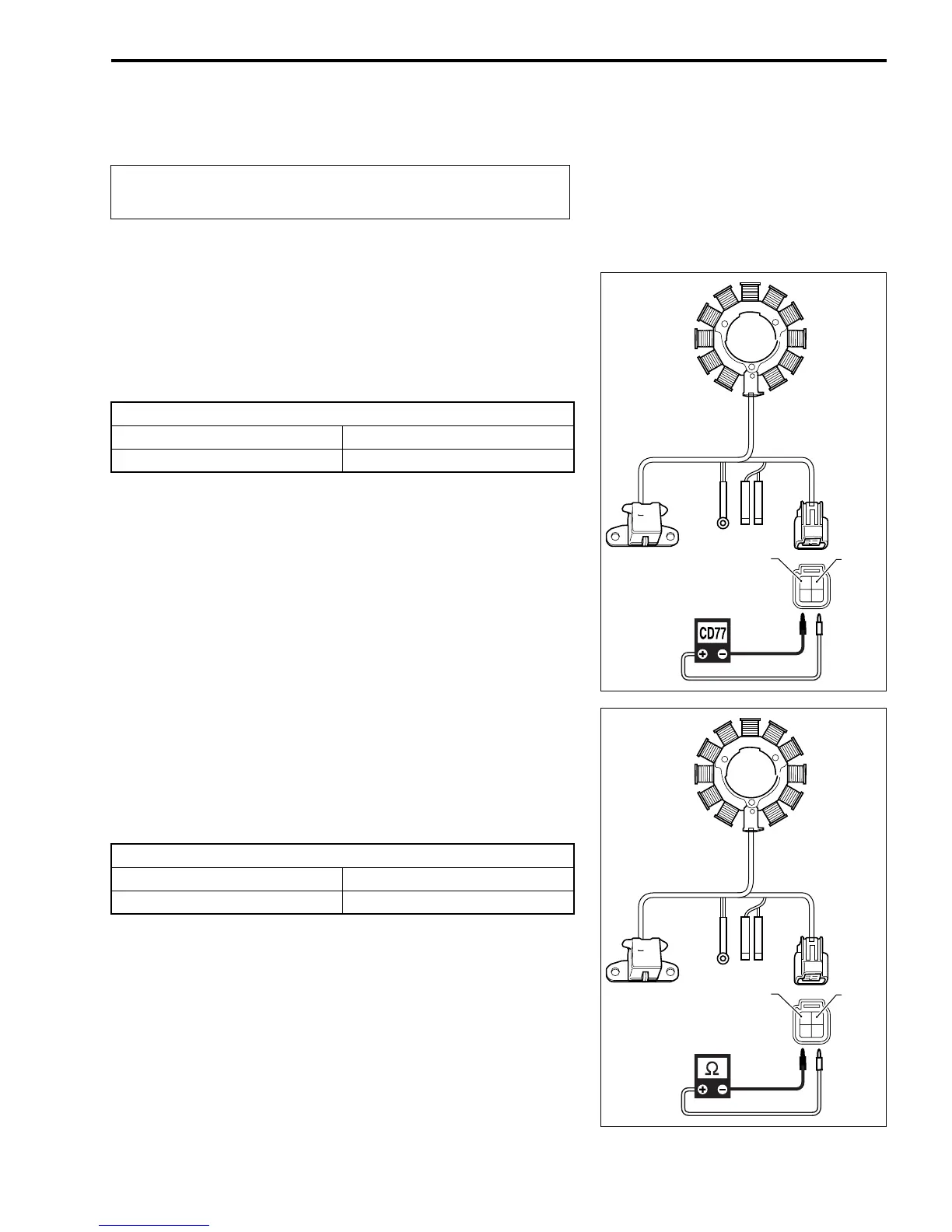

CONDENSER CHARGE COIL OUTPUT
Peak Voltmeter Stevens CD-77
Tester range: POS 50
1. Disconnect the condenser charge coil lead wire connector.
2. Connect the tester probe to the coil lead wires as shown.
3. Remove the all spark plugs.
4. Crank with the recoil starter, then measure voltage.
Condenser charge coil output: 15 V or over
If measurement is out of specification, replace the condenser
charge coil.
CONDENSER CHARGE COIL RESISTANCE
09930-99320: Digital tester
Tester range: Ω (Resistance)
1. Disconnect the condenser charge coil lead wire connector.
2. Connect the tester probe to the coil lead wires as shown.
Condenser charge coil resistance: 12.5 – 18.8 Ω
If measurement is out of specification, replace the condenser
charge coil.
Always disconnect the battery cables from battery before
commencing electrical resistance test.
Tester probe connection
+ (Red) - (Black)
Green Black/Red
1
Black/Red
Green
Tester probe connection
Probe Other probe
Green Black/Red
1
Black/Red
Green
