DF9.9T/TH “K8” (’08) MODEL 12-27

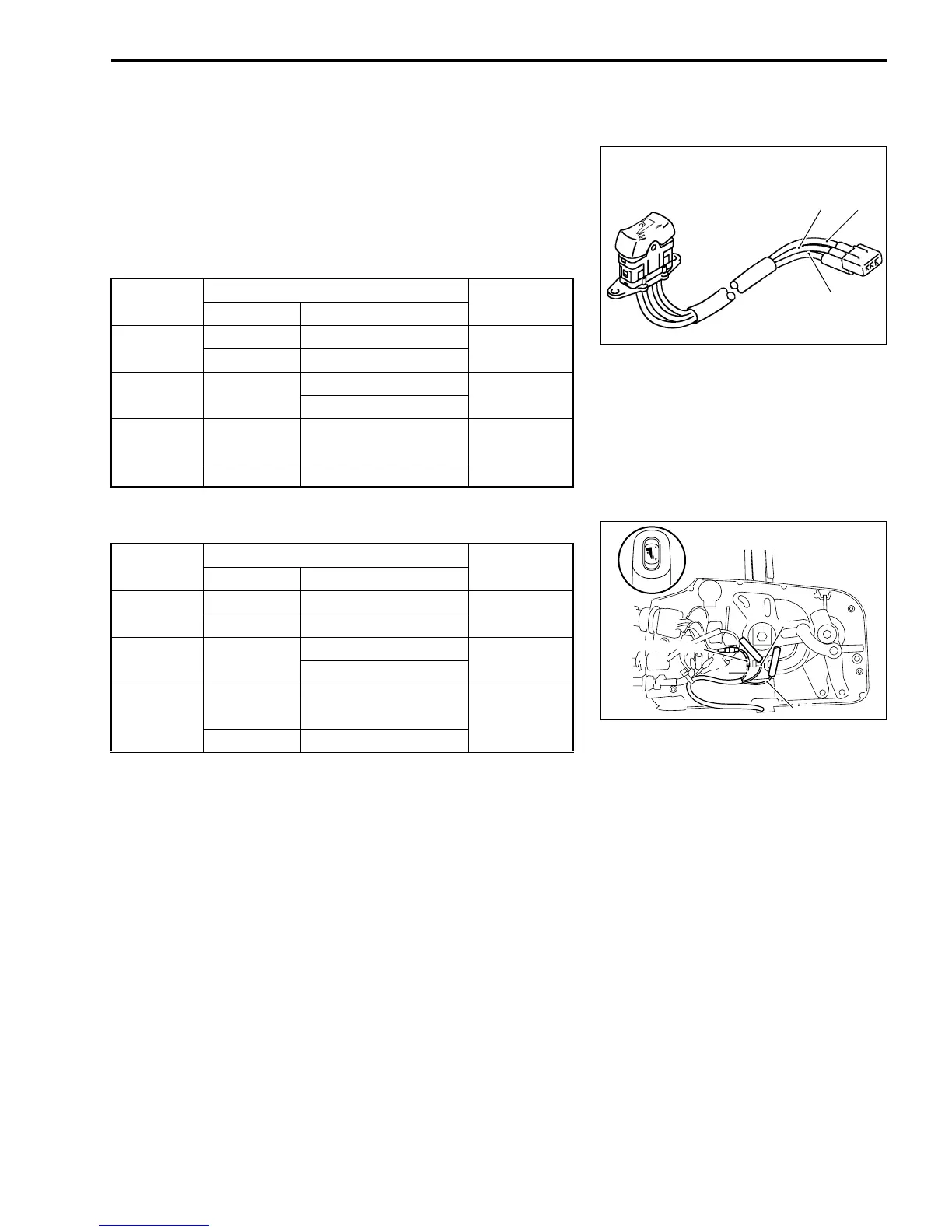

PT SWITCH
Test continuity between the switch lead wires at each of the
three switch positions.
 09930-99320: Digital tester
 Tester range:  (Continuity)
Remote control box side
Tester probe connection Tester
indicates
Red + Black -
DN side
depressed
• Red • Lg (with white tube)
Continuity
• Pink • White
UP side
depressed
Light Blue
• Lg (with white tube)
Continuity
• White
Not
depressed
• Red
• Pink
• Lg (with white tube)
Infinity
Light Blue • White
W
Lbl
P
Tester probe connection Tester
indicates
Red + Black -
DN side
depressed
• Red • Lg (with white tube)
Continuity
• Pink • White/Red
UP side
depressed
Light Blue
• Lg (with white tube)
Continuity
• White/Red
Not
depressed
• Red
• Pink
• Lg (with white tube)
Infinity
Light Blue • White/Red
R
Lbl
Lg
White tube
