6-6 POWER UNIT
23. Remove six (6) bolts and two (2) nuts.
Lift up and remove power unit from oil pan.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
NOTE:
Do not re-use gasket. Always replace with new part.
POWER UNIT
NOTE:

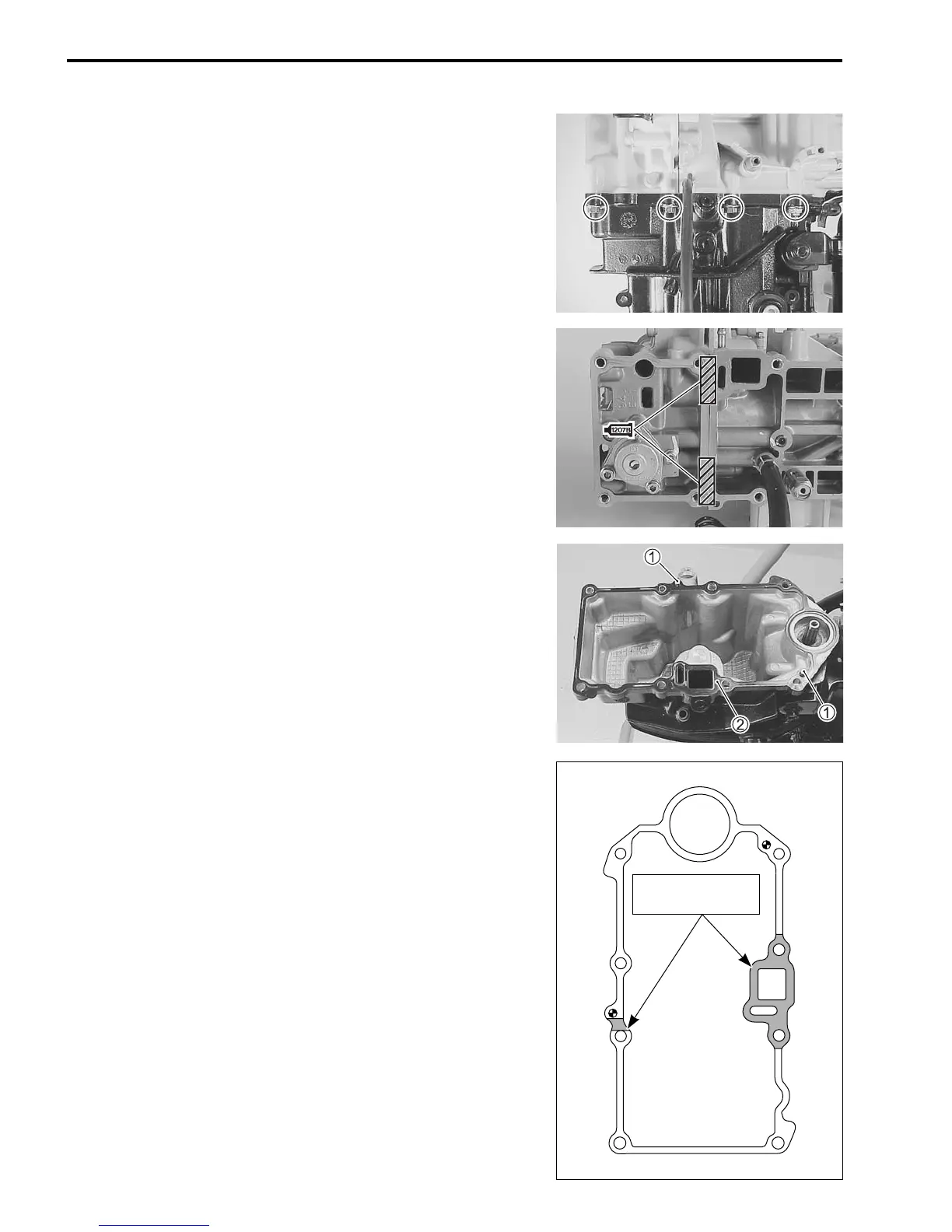

Before installing power unit, apply sealant to the two hatched
areas shown in the illustration right.
99000-31140: SUZUKI BOND “1207B”
• Install dowel pins 1, gasket 2.
• Apply Suzuki Water Resistant Grease to driveshaft splines.
99000-25161: SUZUKI WATER RESISTANT GREASE
99000-31140: SUZUKI BOND “1207B”
NOTE:
• Apply sealant to both surfaces of oil pan gasket at the indi-
cated positions (as shown with hatched lines).
• Lower the power unit onto oil pan.
NOTE:
Rotate crankshaft to aid alignment of driveshaft and crankshaft
splines.
Apply bond 1207B
