POWER UNIT 6-5

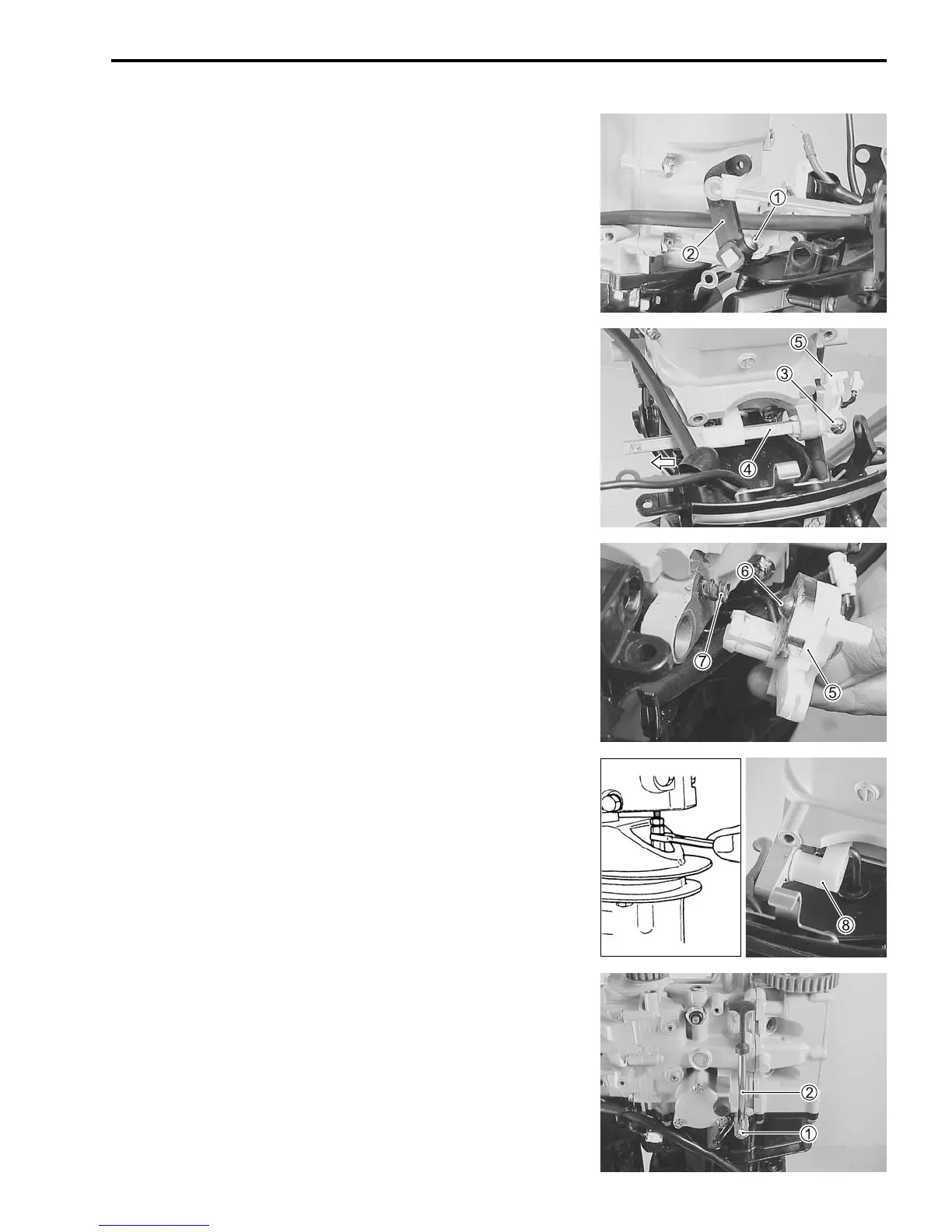

18. Unscrew the screw 1, then remove the clutch control lever
2 from the clutch lever shaft.
19. Remove the screw 3 securing clutch notch lever 5.
Remove clutch lever shaft 4.
20. Remove clutch notch lever 5, then account for clutch notch
ball 6 and spring 7.
21. Separate the clutch rod from the shift rod. (See page 8-2.)
Push the clutch rod arm 8 out from pivot eyelet on crank
case.
22. Remove bolt 1 and oil dipstick tube 2.
