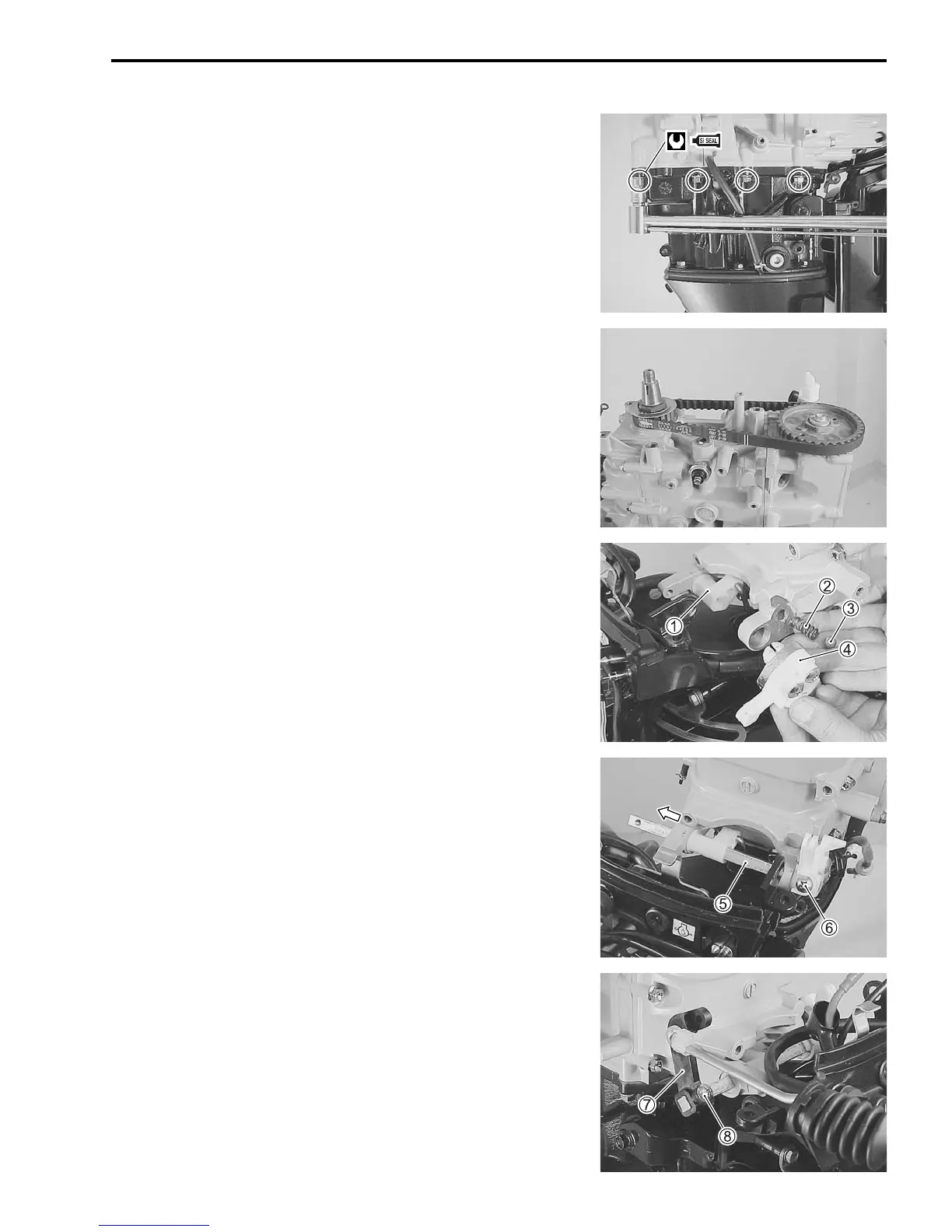

POWER UNIT 6-7
• Apply Suzuki silicone seal to power unit mounting bolts and
tighten bolts and nuts to specified torque.
99000-31120: SUZUKI SILICONE SEAL
Power unit mounting bolt/nut:
23 N·m (2.3 kg-m, 16.5 lb-ft)
TIMING BELT
• Install timing belt. (See page 2-11 to 2-12.)
CLUTCH LEVER SHAFT
• Install clutch rod arm 1.
• Install clutch notch spring 2, ball 3 and clutch notch lever 4.
• Install clutch lever shaft 5 by passing it from PORT side
through the clutch notch lever and then the clutch rod arm.
• Tighten the clutch notch lever with screw 6.
• Install clutch control lever 7, then tighten screw 8 securely.
