6-8 POWER UNIT
FLYWHEEL

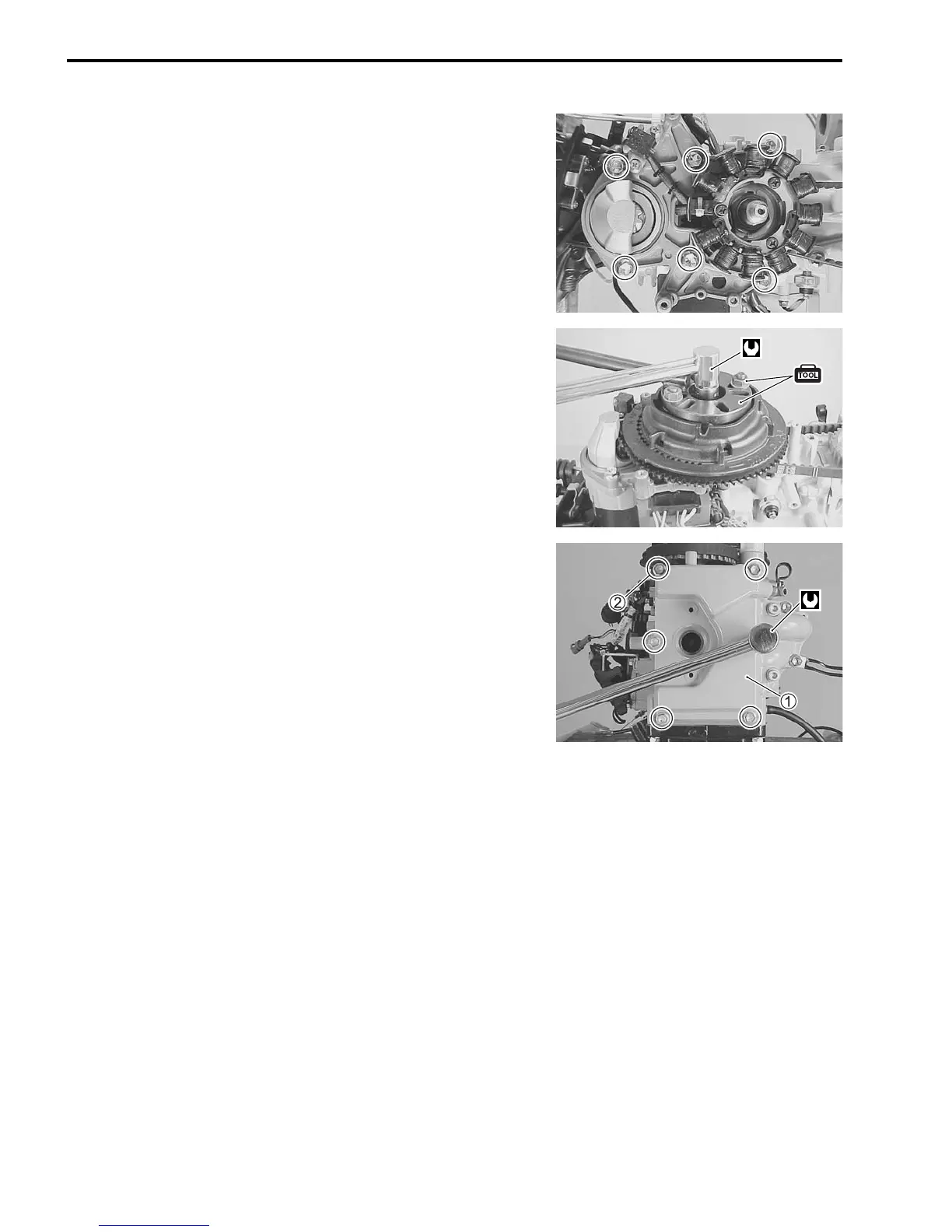

• Install stator base and the battery and condenser charge coil.
(See page 3-12.)
• Install flywheel and tighten flywheel nut to specified torque.
(See page 3-13.)
Flywheel nut: 80 N·m (8.0 kg-m, 58.0 lb-ft)
09930-48720: Flywheel holder
09930-49210: Flywheel holder attachment
CYLINDER HEAD COVER
NOTE:
Before installing cylinder head cover, check valve
clearance. (See page 2-8.)
• Install cylinder head cover gasket and cylinder head cover 1,
then tighten cover bolts 2 to specified torque.
Cylinder head cover bolt: 10 N·m (1.0 kg-m, 7.0 lb-ft)
FINAL ASSEMBLY CHECK
Perform the following checks to ensure proper and safe opera-
tion of the repaired unit.
• All parts removed have been returned to their original posi-
tions.
• Lower unit gear engagement is properly adjusted.
(See page 8-19.)
• Fuel and water hose routing match’s service manual illustra-
tion. (See page 9-11 to 9-12.)
• Wire routing match’s service manual illustration.
(See page 9-2 to 9-9.)
• No fuel leakage is evident when fuel system is pressurized.
(See page 4-3.)
• No water leakage is evident during final test running.
