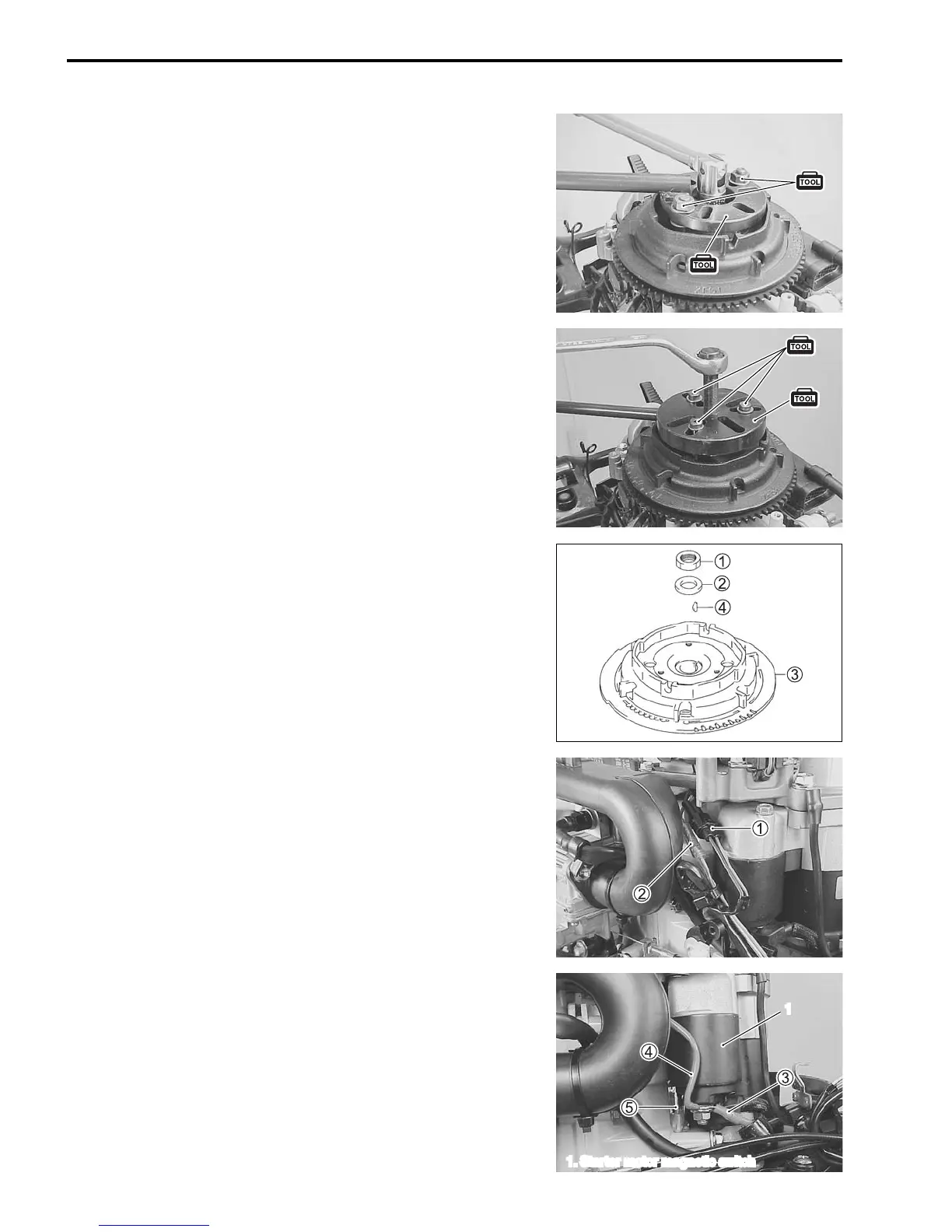

3-10 IGNITION AND ELECTRICAL
2. Using special tools, loosen flywheel nut 2–3 turns.
09930-48720: Flywheel holder
09930-49210: Flywheel holder attachment
NOTE:
Do not remove flywheel nut at this time.
This nut prevents damage to the crankshaft when using flywheel
remover tools.
3. Using special tools, loosen flywheel from crankshaft.
09930-39411: Flywheel remover
09930-39210: Flywheel remover bolt
4. Remove flywheel nut 1, washer 2, flywheel 3 and key 4.
[Battery & Condenser charge coil/Pulser coil]
5. Remove side covers. (See page 7-2.)
6. Disconnect stop switch lead wire connector 1.
Disconnect starter button lead wire connector 2.
(Tiller handle model)
7. Remove nut and positive + battery cable 3, positive + bat-
tery charge cable 4 from the magnetic switch “B” terminal of
starter motor.
Disconnect the red lead wire 5 from starter motor magnetic
switch “S” terminal.
1
1. Starter motor magnetic switch
