PERIODIC MAINTENANCE 2-9
ADJUSTMENT

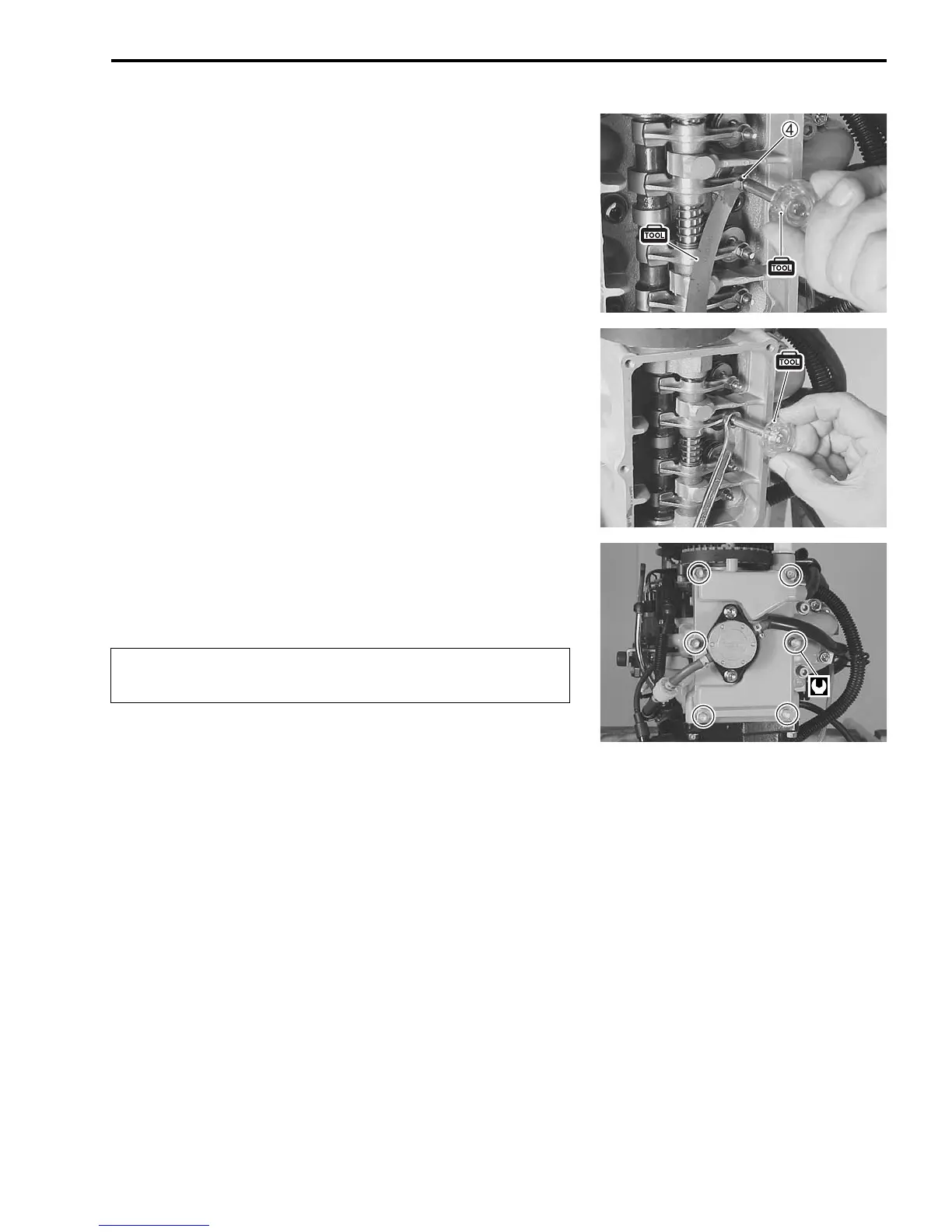

6. Loosen valve adjusting lock nut 4.
7. Turn valve adjusting screw using the valve adjustment driver
to bring valve clearance to within specification.
09900-20803: Thickness gauge
09917-14910: Valve adjustment driver
8. Tighten valve adjusting lock nut while holding valve adjusting
screw.
Valve adjusting lock nut: 11 N·m (1.1 kg-m, 8.0 lb-ft)
9. Recheck valve clearance.
10. Tighten the cylinder head cover bolts to specified torque.
Cylinder head cover bolt: 10 N·m (1.0 kg-m, 7.0 lb-ft)
Checking
• All parts removed have been returned to their original posi-
tions.
• Check hose routing.
Do not re-use gasket once removed. Always use a new
gasket.
