5-4 RECOIL STARTER

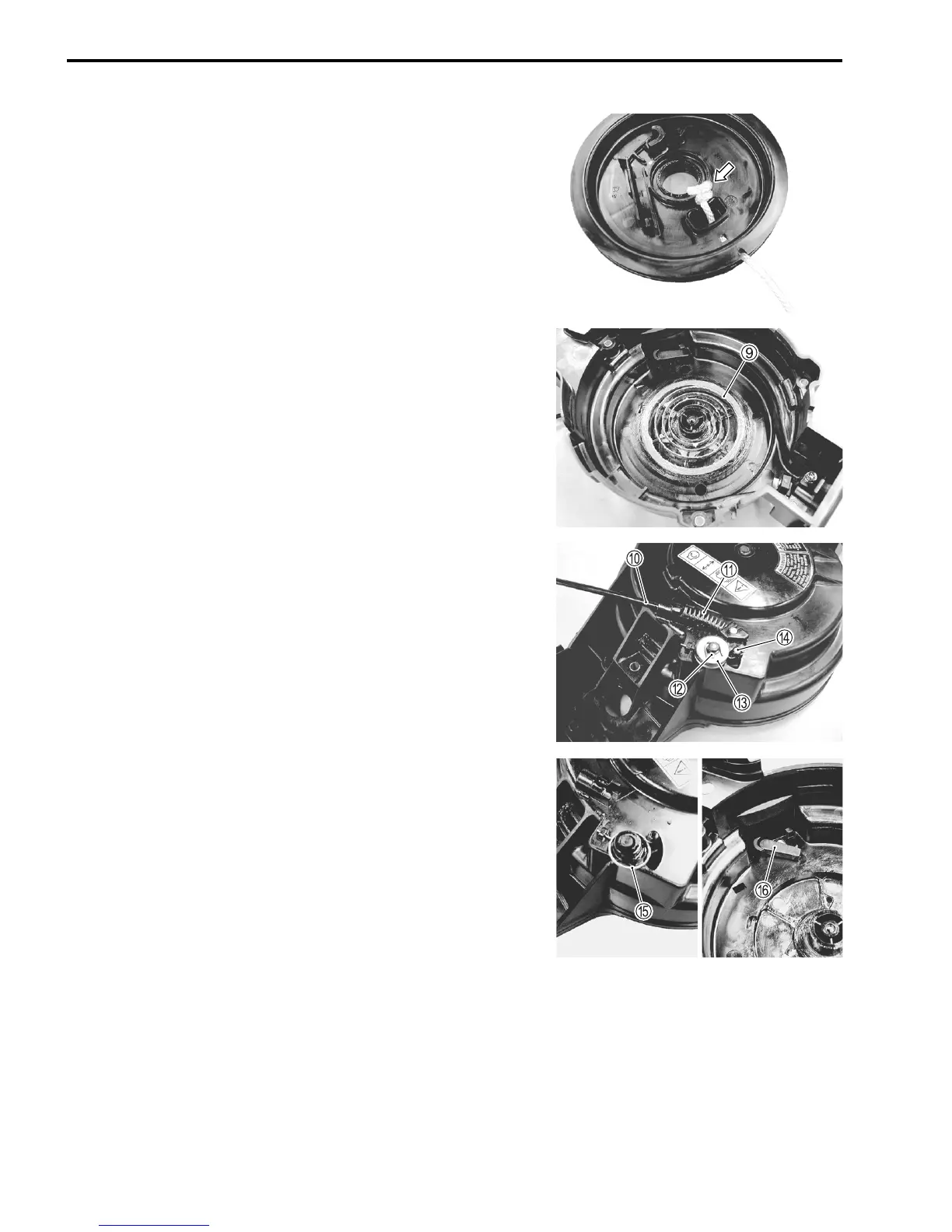

5. Remove the rope.
6. Remove the recoil spring 9.
NOTE:
Do not remove the recoil spring unless replacement is neces-
sary. It should be visually inspected in its assembled position.
7. Remove the NSI cable 0 with spring A.
Remove the cotter pin B, washer C and stopper arm D.
8. Remove the reel stopper spring E and reel stopper F.
