LOWER UNIT 8-7
INSTALLATION

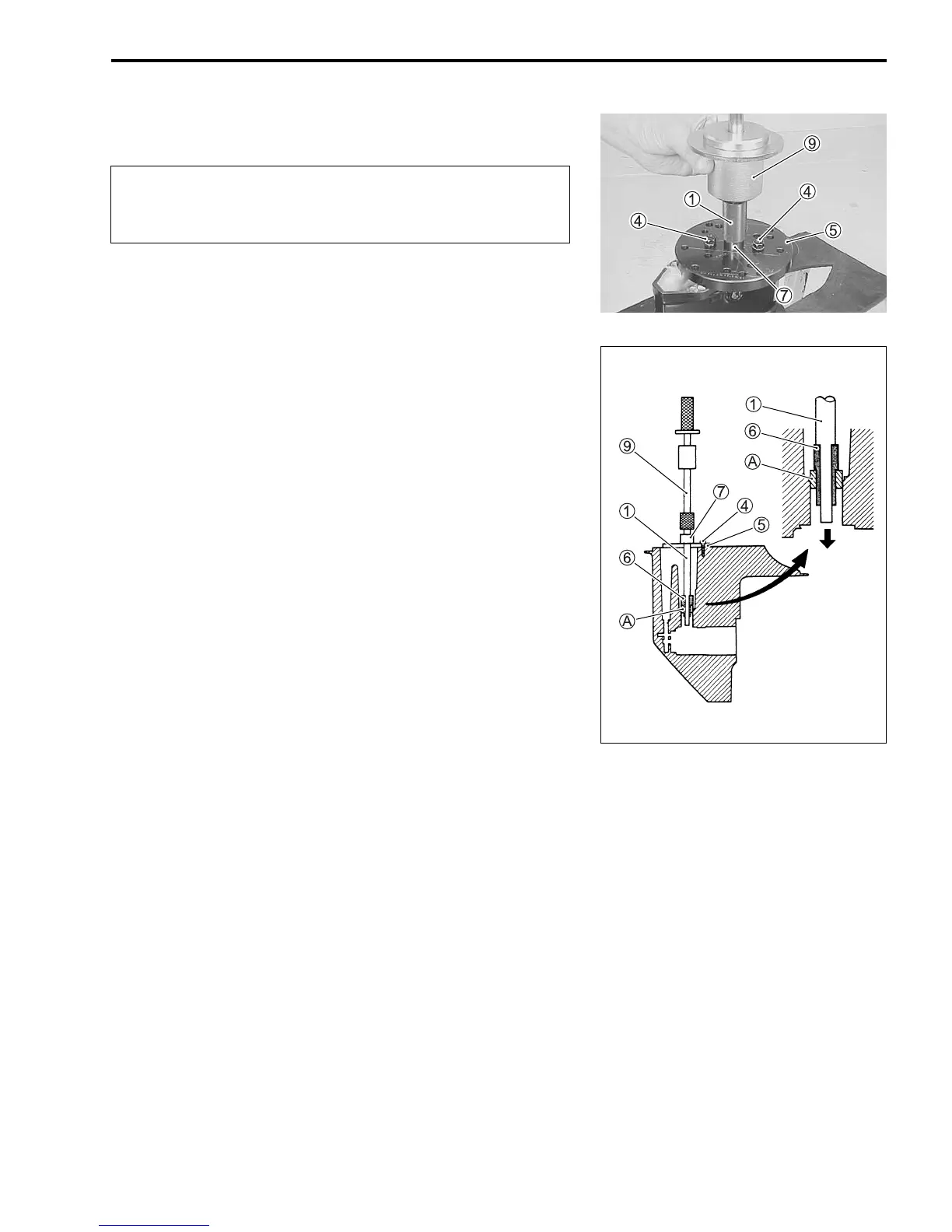

1. Set the installation shaft 1, plate 5, spacer 7, attachment
6 and pinion bearing A as shown in the figure.
2. Place the shaft 1 (with the pinion bearing A on the end of
shaft) into the gearcase.
3. Secure the plate 5 by tightening bolts 4.
4. Thread the sliding hammer 9 into the top of the shaft 1.
5. Drive the pinion bearing A down into position by gently strik-
ing the shaft 1 until the coupler touches the spacer 7.
6. Repeat Nos. 1 – 5 to install the second bearing.
• Before installing the bearing, ensure that the inside
of the gearcase is clean and free of debris.
• Ensure that the bearing stamped mark faces upward.
