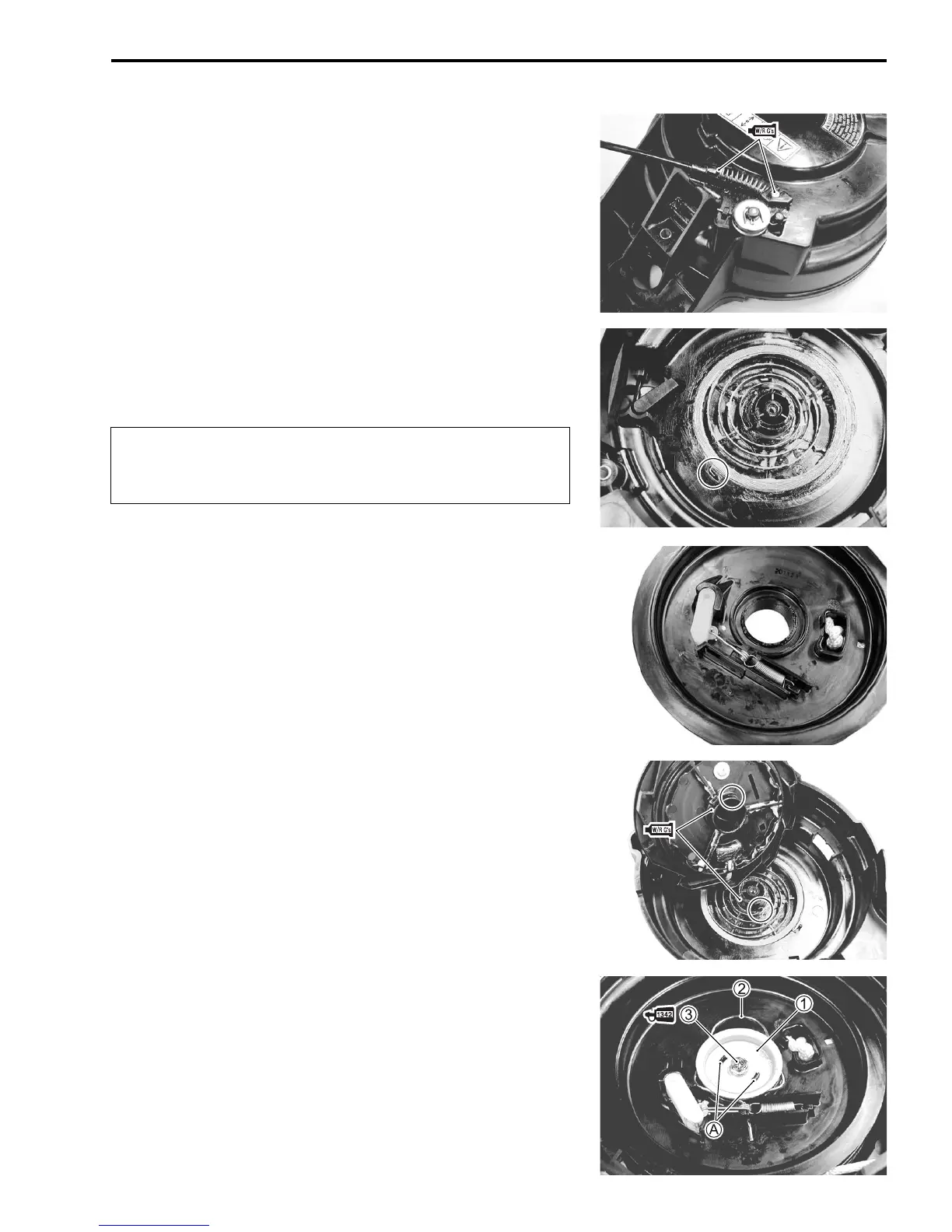

RECOIL STARTER 5-7
• Install NSI set and NSI cable.
Apply grease to NSI cable.
99000-25161: SUZUKI WATER RESISTANT GREASE
• Secure the outer end of recoil spring on groove in recoil case
and wind spring inward towards center of the case in a coun-
terclockwise direction.
• Install the ratchet set.
• Install the reel on the recoil case.
NOTE:
• Apply grease to reel as shown figure.
99000-25161: SUZUKI WATER RESISTANT GREASE
• Align groove in the reel with bent end of spring.
• Install the friction plate 1 (with friction spring 2) and secure it
with bolt 3.
Apply THREAD LOCK to thread of bolt.
99000-32050: THREAD LOCK “1342”
NOTE:
Twist friction plate slightly to align holes in plate with square lugs
A on center boss.
Because of the coiled tension in the recoil spring,
wear the safety glasses and hand protection when
winding or unwinding this components.
