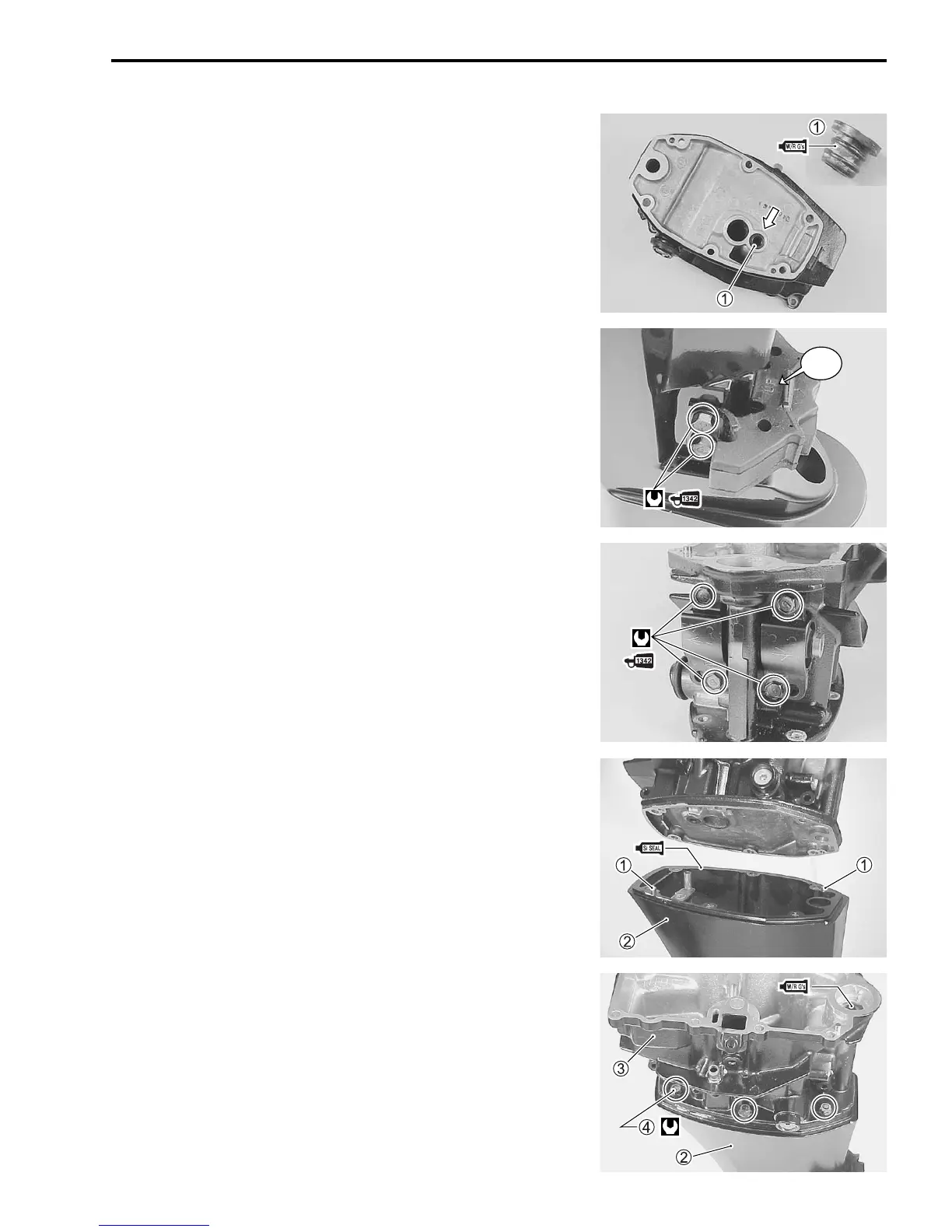

MID UNIT 7-11
WATER TUBE UPPER GROMMET
• Apply grease to outer surface of the water tube upper grom-
met 1.
99000-25161: SUZUKI WATER RESISTANT GREASE
• Install water tube grommet 1 to oil pan.
LOWER MOUNT
1. Install the lower mount with the lettered mark “UP” facing
upward.
2. Apply THREAD LOCK to the lower mount bolts.
99000-32050: THREAD LOCK “1342”
3. Tighten the lower mount bolts to the specified torque.
Lower mount bolt: 23 N·m (2.3 kg-m, 16.5 lb-ft)
UPPER MOUNT
1. Apply THREAD LOCK to the upper mount bracket bolts.
99000-32050: THREAD LOCK “1342”
2. Tighten the upper mount bracket bolts to the specified
torque.
Upper mount bracket bolt: 23 N·m (2.3 kg-m, 16.5 lb-ft)
OIL PAN TO DRIVESHAFT HOUSING
1. Install two dowel pins 1 to the driveshaft housing 2.
2. Apply sealant to mating surfaces of driveshaft housing and
oil pan.
99000-31120: SUZUKI SILICONE SEAL
3. Install the oil pan 3 to driveshaft housing 2.
4. Tighten the driveshaft housing bolts 4 to the specified
torque.
Driveshaft housing bolt: 23 N·m (2.3 kg-m, 16.5 lb-ft)
UP
