7-12 MID UNIT
DRIVESHAFT HOUSING/OIL PAN

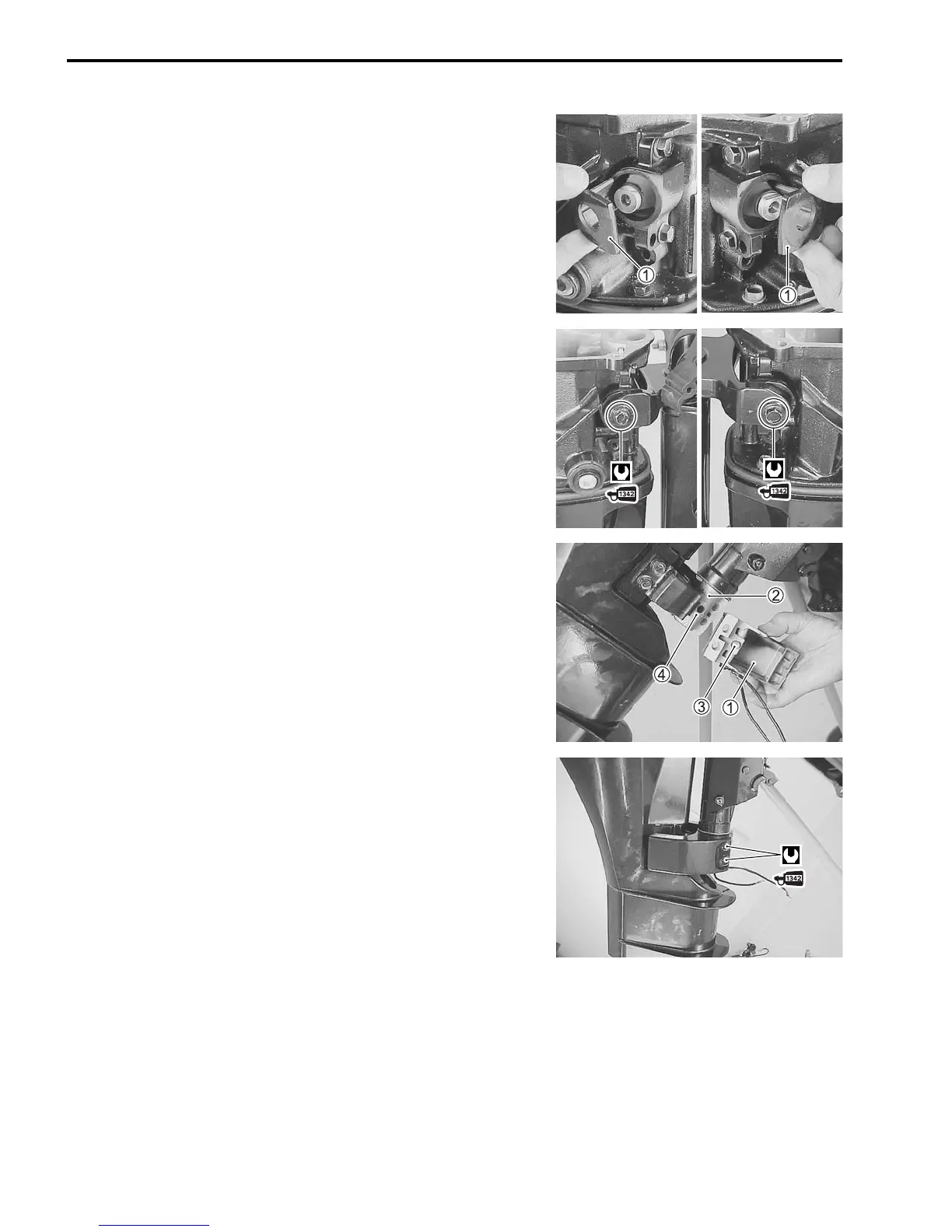

1. Install the upper mount stoppers 1 to each upper mounts.
2. Install driveshaft housing/oil pan to steering bracket.
3. Apply THREAD LOCK to upper mount bolts.
99000-32050: THREAD LOCK “1342”
4. Tighten upper mount bolts to the specified torque.
Upper mount bolt: 23 N·m (2.3 kg-m, 16.5 lb-ft)
LOWER MOUNT COVER
1. When attaching the lower mount cover 1 to steering shaft
2, ensure that the pin 3 properly fits into the hole 4 of
steering shaft.
2. Apply THREAD LOCK to lower mount cover bolts.
99000-32050: THREAD LOCK “1342”
3. Tighten lower mount cover bolts to the specified torque.
Lower mount cover bolt: 23 N·m (2.3 kg-m, 16.5 lb-ft)
