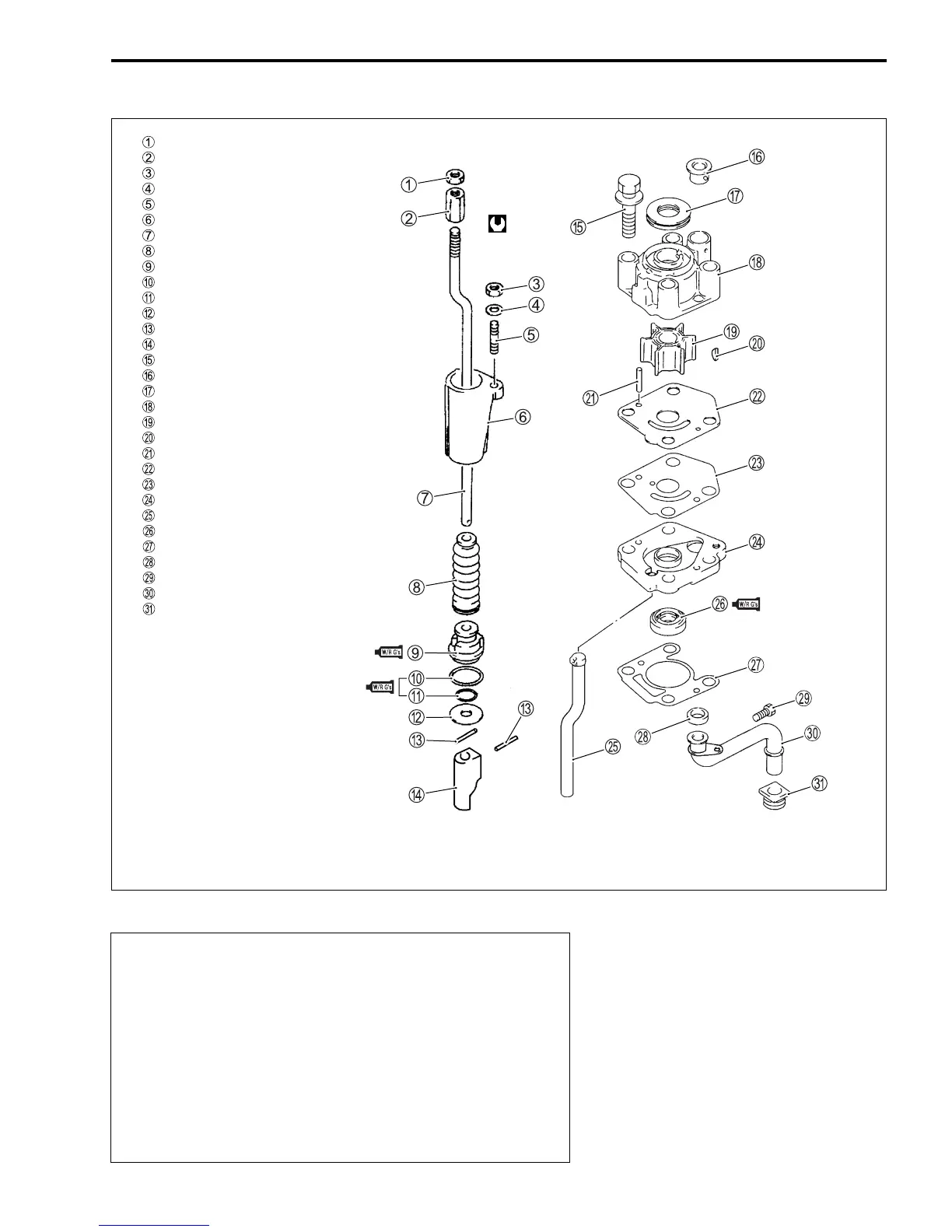

LOWER UNIT 8-13
Nut (1)
Turnbuckle (1)
Nut (1)
Washer (1)
Stud bolt (1)
Collar (1)
Shift rod (1)
Boot (1)
Shift rod guide (1)
O-ring (1)
O-ring (1)
Washer (1)
Spring pin (2)
Shift cam (1)
Bolt (4)
Bush (1)
Grommet (1)
Water pump case (1)
Impeller (1)
Key (1)
Dowel pin (2)
Under panel (1)
Gasket (1)
Water inlet housing (1)
Water drain tube (1)
Oil seal (1)
Gasket (1)
Grommet
Bolt (1)
Water inlet tube (1)
Grommet (1)
18 N·m
1.8 kg-m
13.0 lb-ft
( )
• Make sure that all parts used in assembly are clean
and lubricated.
• After assembly, check parts for tightness and
smoothness of operation.
• Before final assembly, be absolutely certain that all
gear contact, shim adjustments and tolerances are
correct.
Failure to correctly adjust these areas will result in
lower unit damage. (See the “GEARS SHIMMING
AND ADJUSTMENT” section on page 8-21.)
