8-14 LOWER UNIT
SHIFT ROD/SHIFT CAM ASSEMBLY

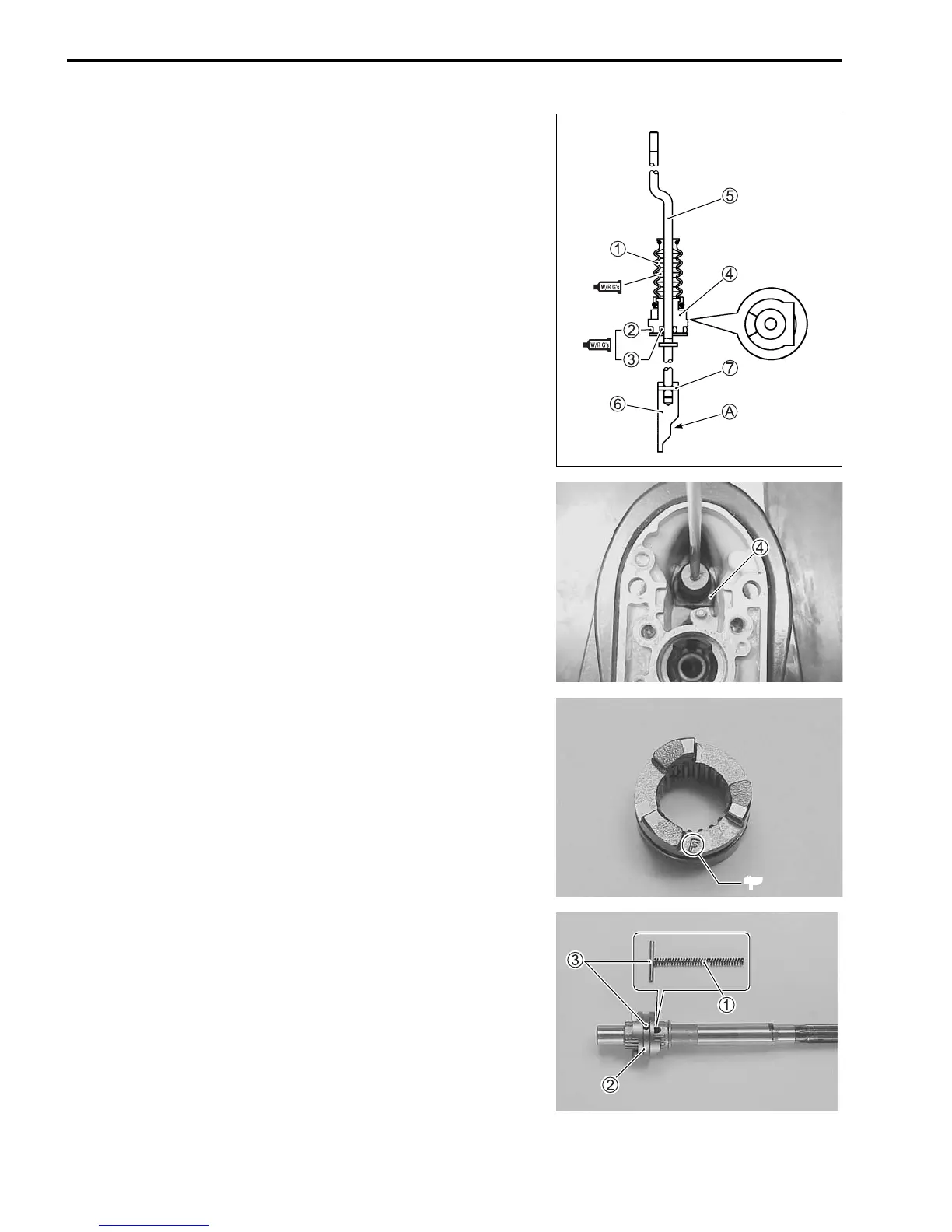

• Apply the grease to the inside of the boot 1, O-ring 2 and
O-ring 3.
99000-25161: SUZUKI WATER RESISTANT GREASE
• Install the shift rod guide 4 to shift rod 5 as shown in the fig-
ure.
• Attach the shift cam 6 to shift rod as shown in the figure and
insert the spring pin 7.
• Install the shift rod/shift cam assembly to gearcase with the
face A of cam facing toward propeller side.
• Install the shift rod guide 4 to gearcase as shown in the fig-
ure.
PROPELLER SHAFT/CLUTCH DOG ASSEMBLY
• Install the clutch dog shifter with “F” mark toward forward gear
side.
• Insert the return spring 1 into propeller shaft. Depress the
return spring and slide the dog pin 3 into both dog 2 and
propeller shaft as shown in right figure.
“F”
