6-28 POWER UNIT

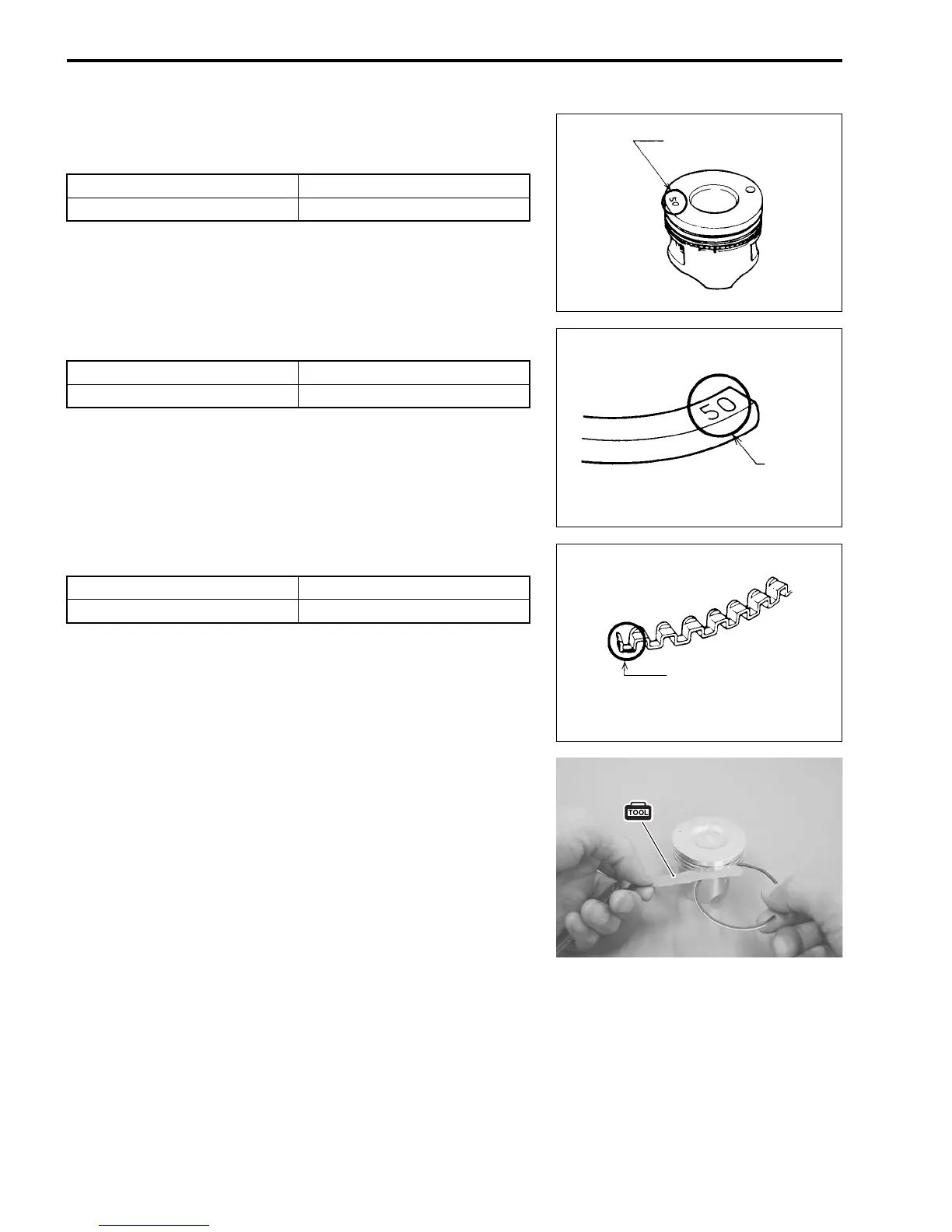

Identification of oversize piston/piston ring
Piston
1st & 2nd ring
Oil ring
NOTE:
For the oil ring side rail, measure the outer diameter of the rail to
distinguish because there is no I.D. mark.
Piston ring to groove clearance
Measure the clearance after decarboning.
09900-20803: Thickness gauge
Standard: 1st & 2nd 0.02 – 0.06 mm (0.001 – 0.002 in)
Service limit: 1st & 2nd 0.10 mm (0.004 in)
If measurement exceeds service limit, replace the piston and/or
piston ring.
09900-20102: Vernier calipers
09900-20205: Micrometer
Piston ring groove width
Standard:
1st & 2nd 1.21 – 1.23 mm (0.0476 – 0.0484 in)
Oil 2.51 – 2.53 mm (0.099 – 0.100 in)
Piston ring thickness
Standard: 1st & 2nd 1.17 – 1.19 mm (0.046 – 0.047 in)
Oversize I.D. mark
0.50 mm (0.020 in) 50
I.D. mark
Oversize I.D. mark
0.50 mm (0.020 in) 50
I.D. mark
1st, 2nd ring
Oversize I.D. mark
0.50 mm (0.020 in) Red paint
I.D. mark
Oil ring spacer
