Suzuki DF15 - Page 166

6-46 POWER UNIT

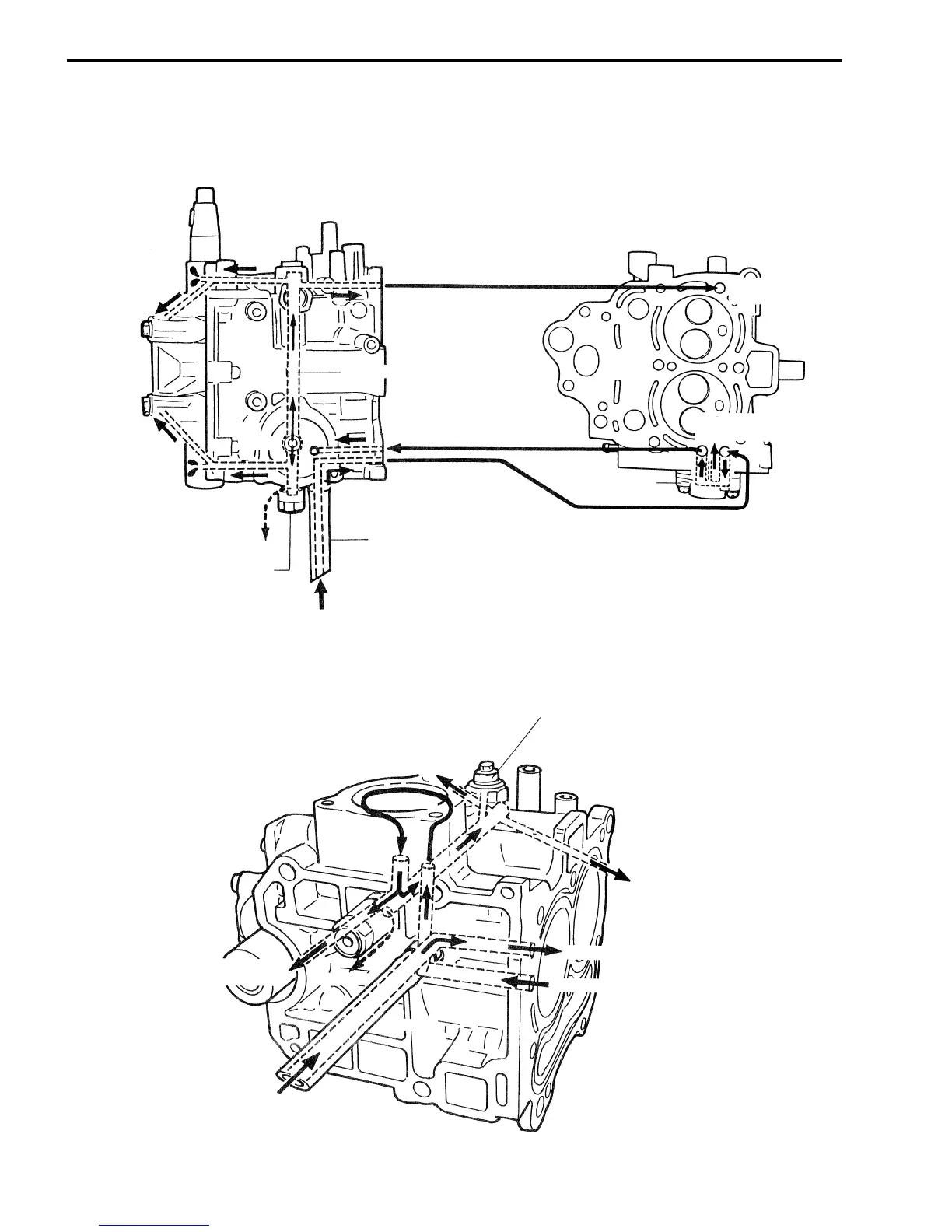

OIL PASSAGE LOCATION
To CAMSHAFT
UPPER JOURNAL
To CAMSHAFT
LOWER JOURNAL
From OIL PUMP
OIL PRESSURE SWITCH
To CRANKSHAFT
UPPER BEARING
To OIL PUMP
OIL PUMP
OIL HOSE
OIL
RELIEF
To #2 CRANK
PIN
To #1 CRANK
PIN
CRANKSHAFT
LOWER BEARING
CRANKSHAFT
UPPER BEARING
OIL REGULATOR
MAIN GALLERY
OIL
FILTER
OIL FILTER
To CAMSHAFT
UPPER JOURNAL
To OIL PUMP
From OIL PUMP
OIL HOSE
OIL RELIEF
To CRANKSHAFT
LOWER BEARING
From
OIL PAN
