MID UNIT 7-15

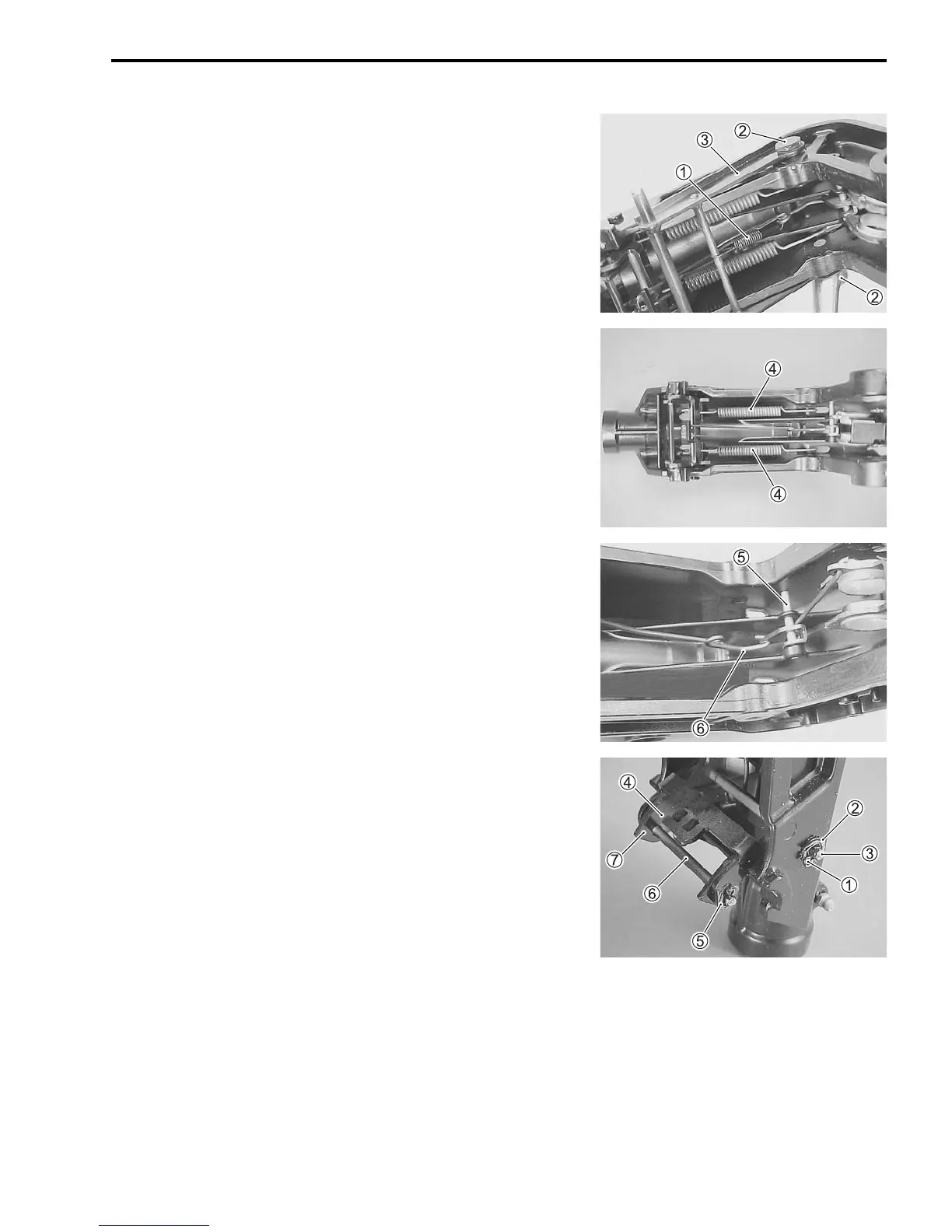

12. Remove the spring 1.
Remove two (2) bolts 2 and shallow drive arm 3.
13. Remove two springs 4 from reverse lock arm and swivel
bracket.
14. Remove the release arm pin 5 and release link 6.
15. Remove the cotter pin 1, washer 2, pin 3 and reverse lock
arm link 4.
Remove the cotter pin 5, pin 6 and reverse lock arm 7.
