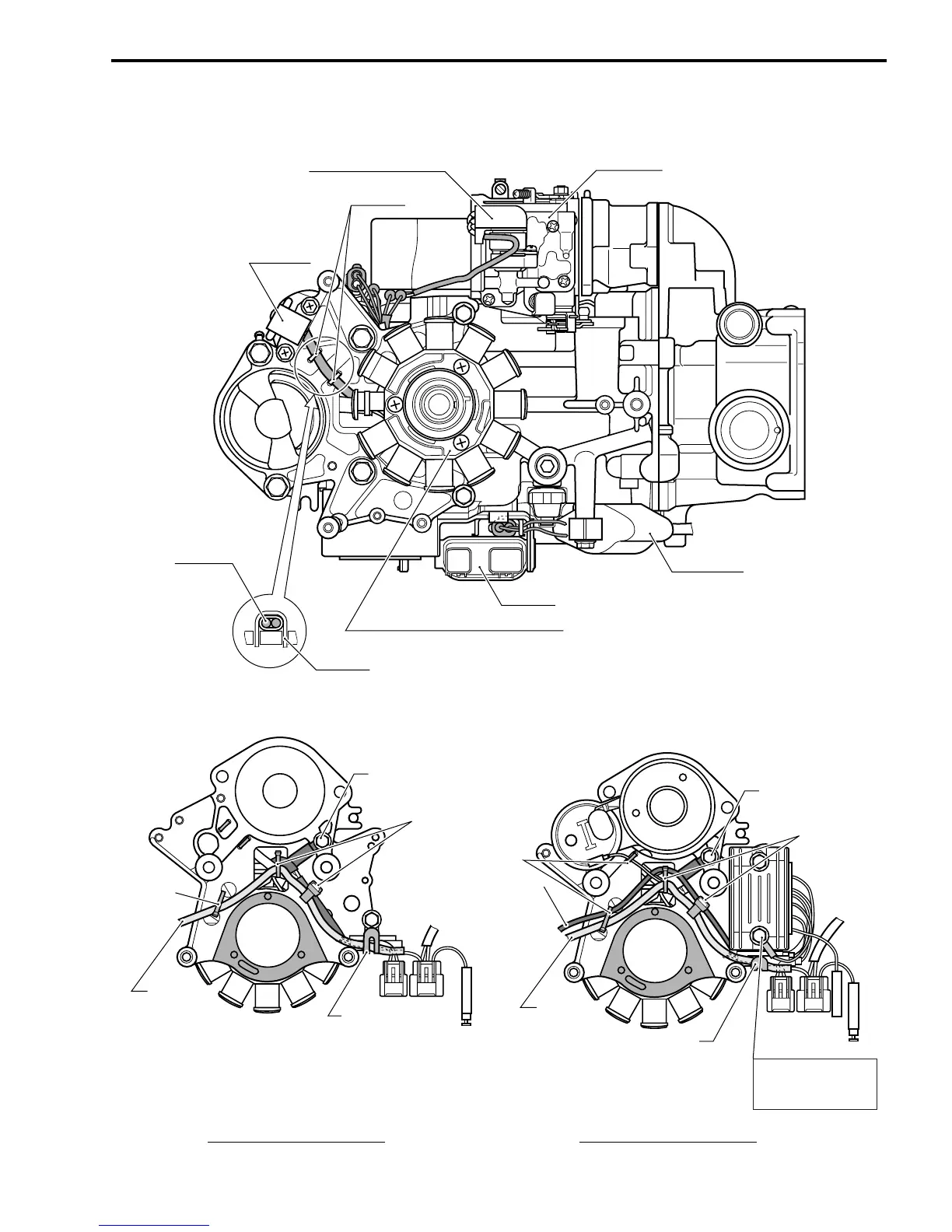

WIRE/HOSE ROUTING 9-7
Pulser coil
ground lead/Bolt
Main
wiring
harness
Cable tie
Cable tie
Clamp
Cable tie
Pulser coil
ground lead/Bolt
Main
wiring
harness
Cable tie
Clamp
Electric starter model
To Auto-enrichener
(PTC heater)
(R model)
Manual starter model
Bolt
Tighten the bolt and
rectifier ground lead
wire together.
Ignition coil
Carburetor
Auto-enrichener
{PTC heater}(R model)
Pulser coil
Cable tie
CDI unit
Battery and condenser charge coil
Cable tie
Lead wire
