WIRE/HOSE ROUTING 9-9
Remote control model

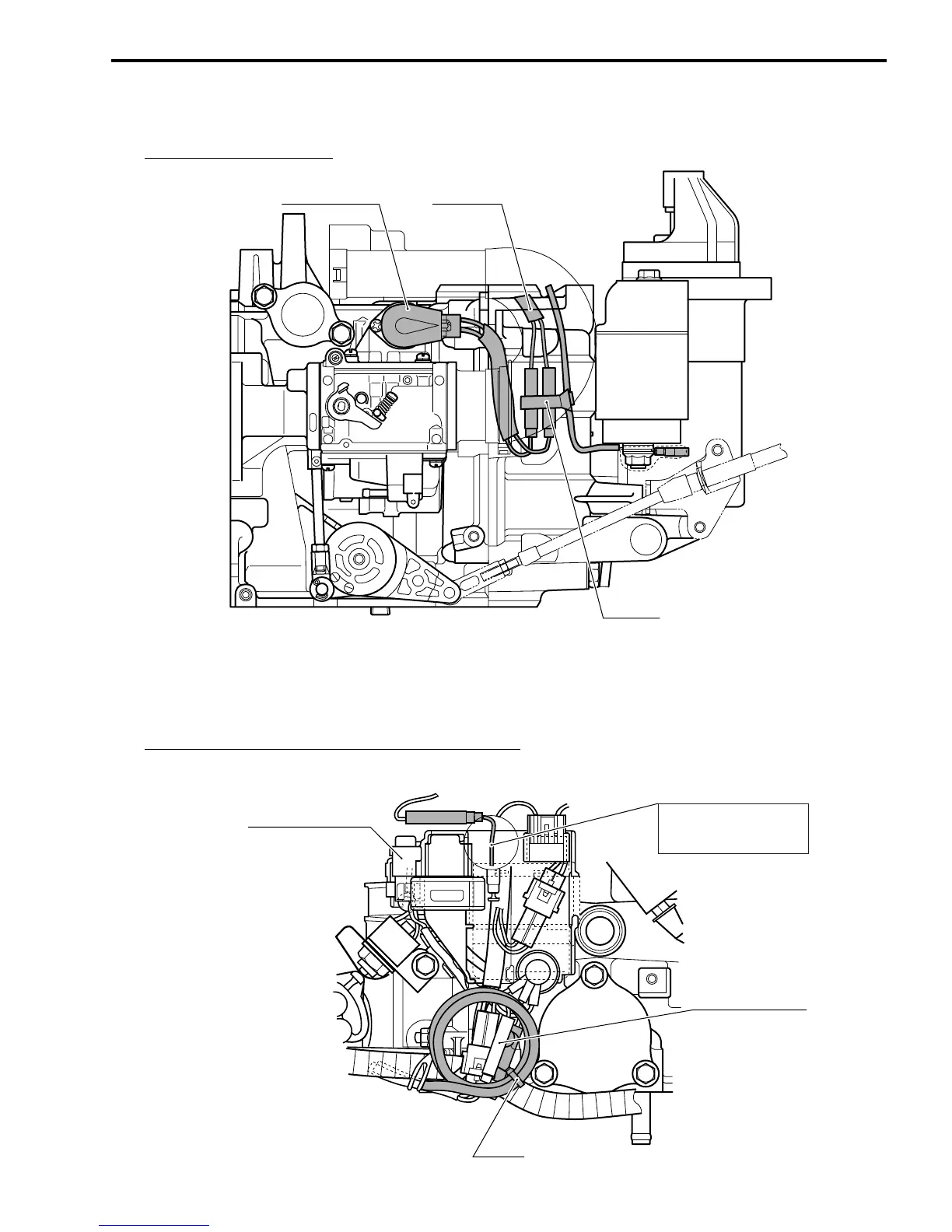

Routing of Receptacle lead wire (Optional part)
Fuse lead wire
Route the fuse lead wire
between CDI unit and
electric parts holder.
PTC heater
lead wire
Auto-enrichener
(PTC heater)
Cable tie
Fuse case assembly
Receptacle ground
lead wire
Clamp
