12-16 DF9.9T/TH “K8” (’08) MODEL

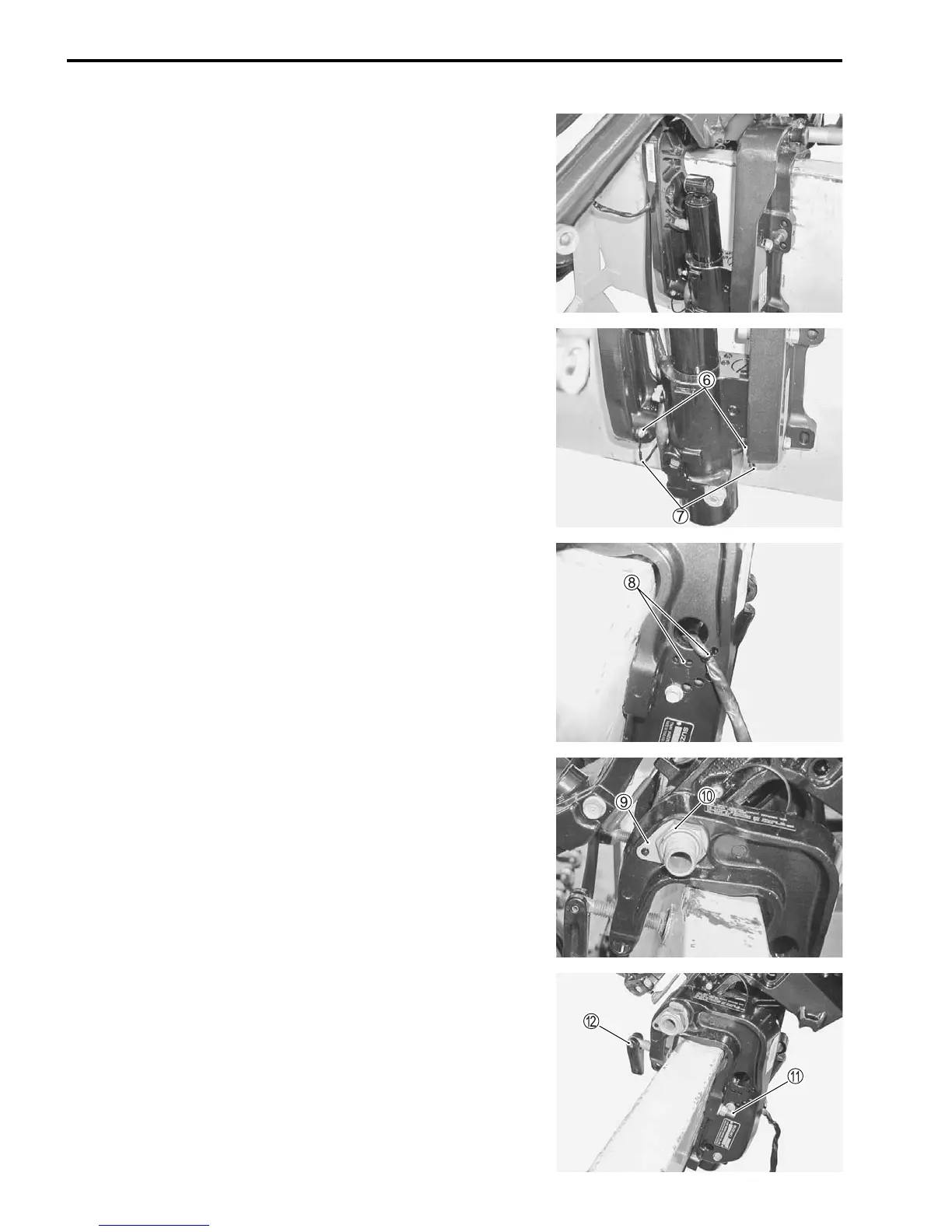

Connect the PT motor cable connector to PT relay.
Lower tilt rod to full down position and disconnect the battery
cable.
Disconnect the PT motor cable connector from the PT relay.
Remove the two (2) screws 6 securing bonding wire 7.
Cut the cable ties 8 binding PT motor cable.
Using flat screw driver, drive locking edge of lock washer 9 to
clamp bracket side.
Loosen the clamp bracket shaft nut 0.
NOTE:
Complete removal of the clamp bracket shaft nut is not required.
Nut should be loosened as far as the end of the shaft threads
only to facilitate removal of the PT unit.
Remove a PORT engine mounting bolt A.
Loosen the PORT clamp screw B.
