12-18 DF9.9T/TH “K8” (’08) MODEL
PT MOTOR
REMOVAL
NOTE:
Before removing PT motor, wash the PT body with a stiff bristle
brush and hot, soapy water to remove sand or dirt and dry the
PT body with compressed air.

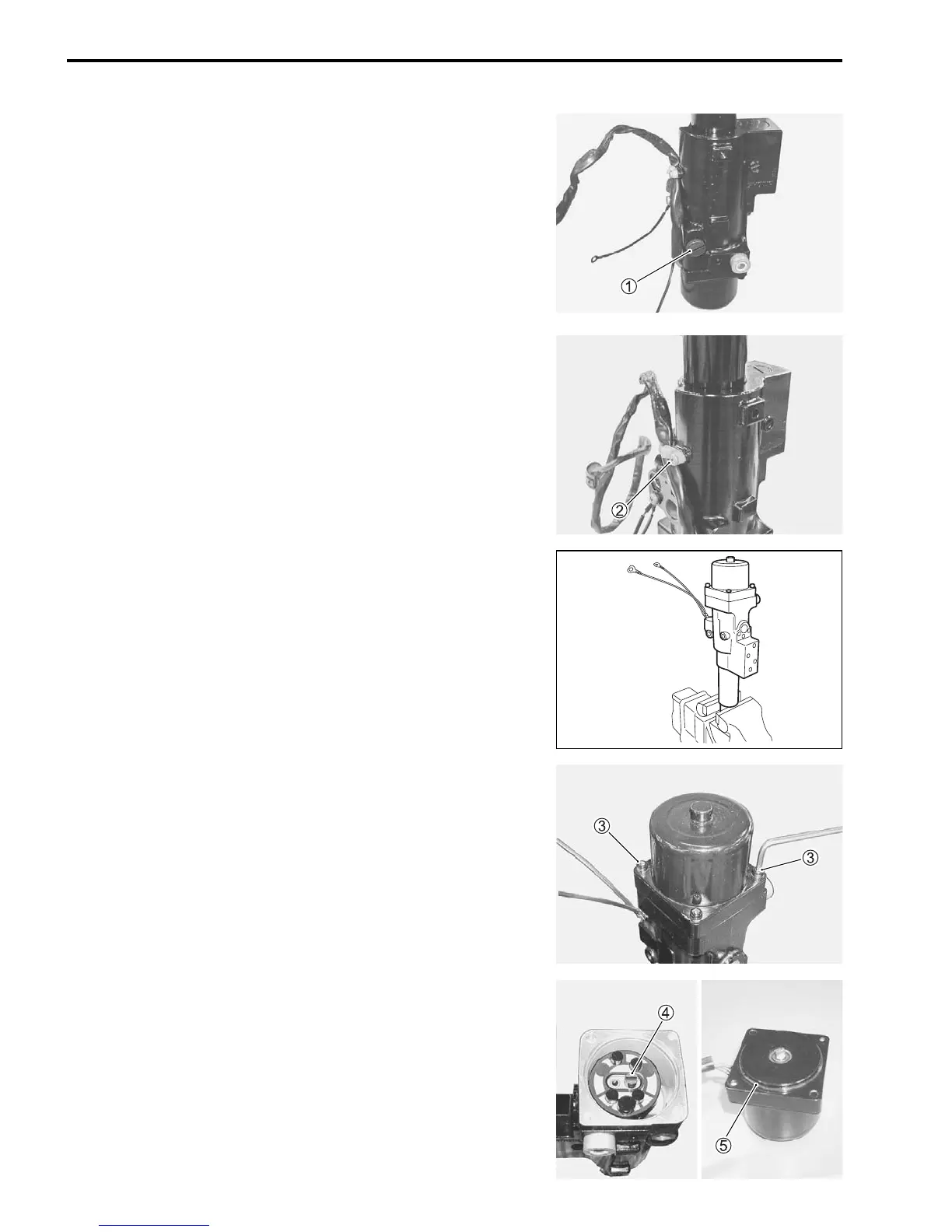

Unscrew the oil filler plug 1 and drain PT oil into suitable con-
tainer.
Remove the screw 2 securing clamp of PT motor cable.
Place the upper eye of the tilt rod in a vise.
Tighten the vise only enough to secure the tilt rod, DO NOT
OVER TIGHTEN.
NOTE:
To prevent damage to the tilt rod use wood blocks, vise jaw pro-
tectors, etc., between the vise jaws and PT components before
tightening vise.
Remove the two (2) bolts 3 securing PT motor, then detach the
PT motor assembly.
Note the position of drive joint 4 and O-ring 5 and remove
them.
