DF9.9T/TH “K8” (’08) MODEL 12-21
INSTALLATION

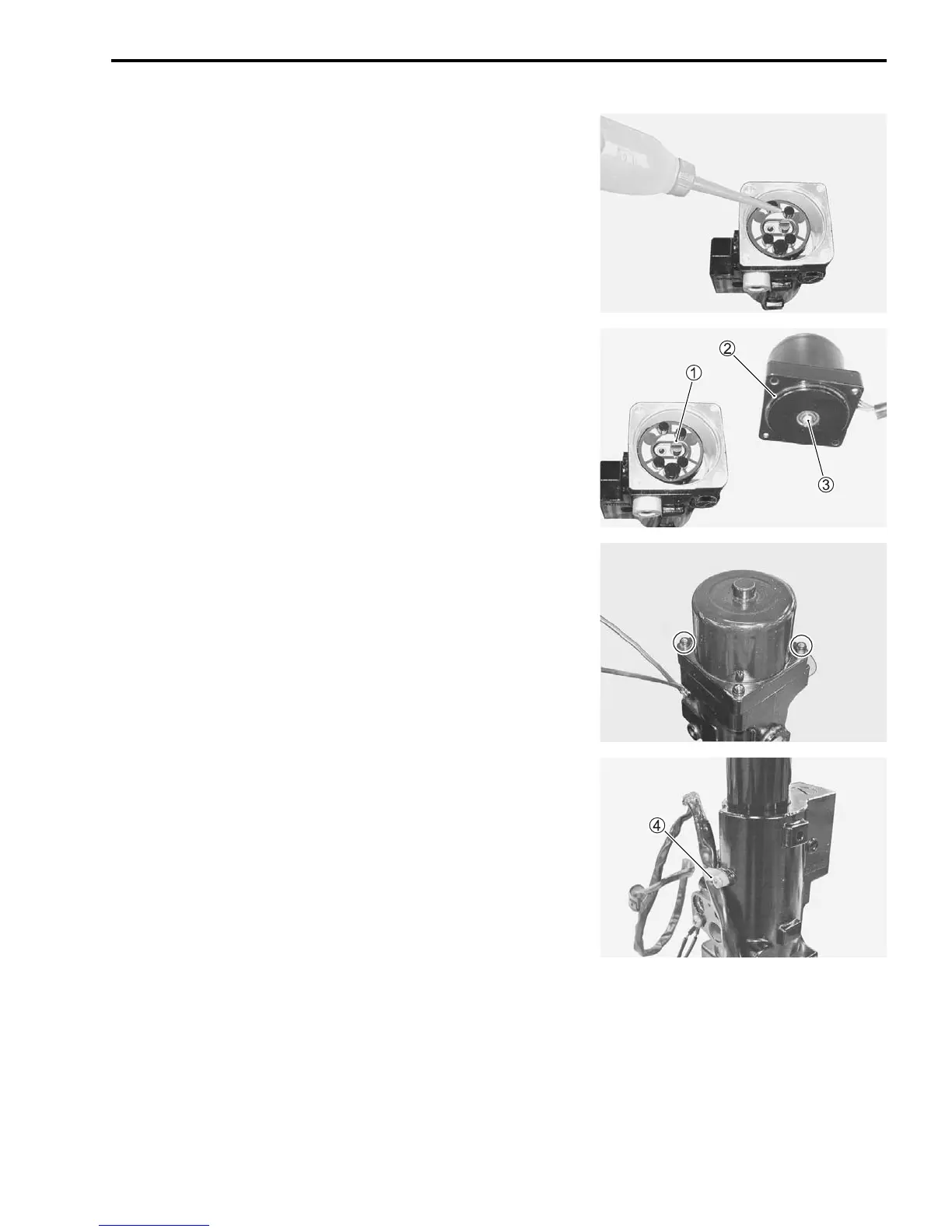

Installation is reverse of removal with special attention to follow-
ing steps.
• Ensure that the drive joint 1 is aligned and firmly inserted into
the gear pump assembly.
• Fit O-ring 2 to PT motor.
• Check the level of PT fluid contained in the PT pump case. If
level is low, add recommended PT fluid until level with mating
surface of PT motor.
• Ensure that the faces of the PT motor and pump unit are free
of dirt or debris.
When attaching the PT motor to the PT pump case, ensure
that the tip of armature shaft 3 fits firmly into the drive joint
1.
• Tighten the two (2) bolts to specified torque.
PT motor bolt: 5 N·m (0.5 kg-m, 3.6 lb-ft)
• Fix the PT motor cable with clamp 4.
