12-32 DF9.9T/TH “K8” (’08) MODEL

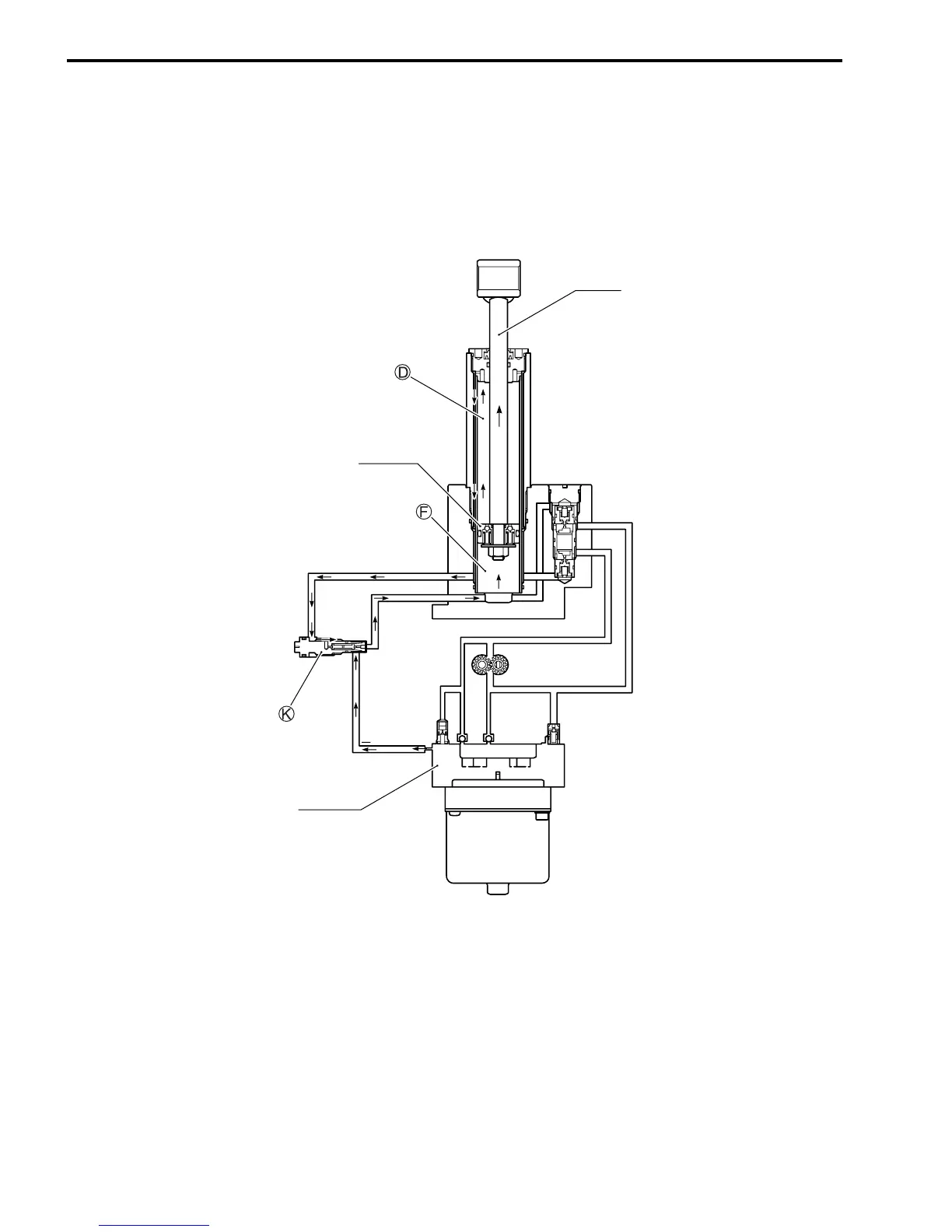

MANUAL RELEASE CIRCUIT (UP MODE)
(1) With the manual release valve K open, the engine can also be raised manually to the fully tilted position.
(2) Oil from the upper chamber D of the tilt cylinder will flow through manual release valve K into the lower
chamber F of the cylinder.
(3) The upward movement of the tilt rod will increase the cylinder area beneath it, thereby allowing oil from
the reservoir to flow into this area.
Tilt rod
Tilt piston
Reservoir
