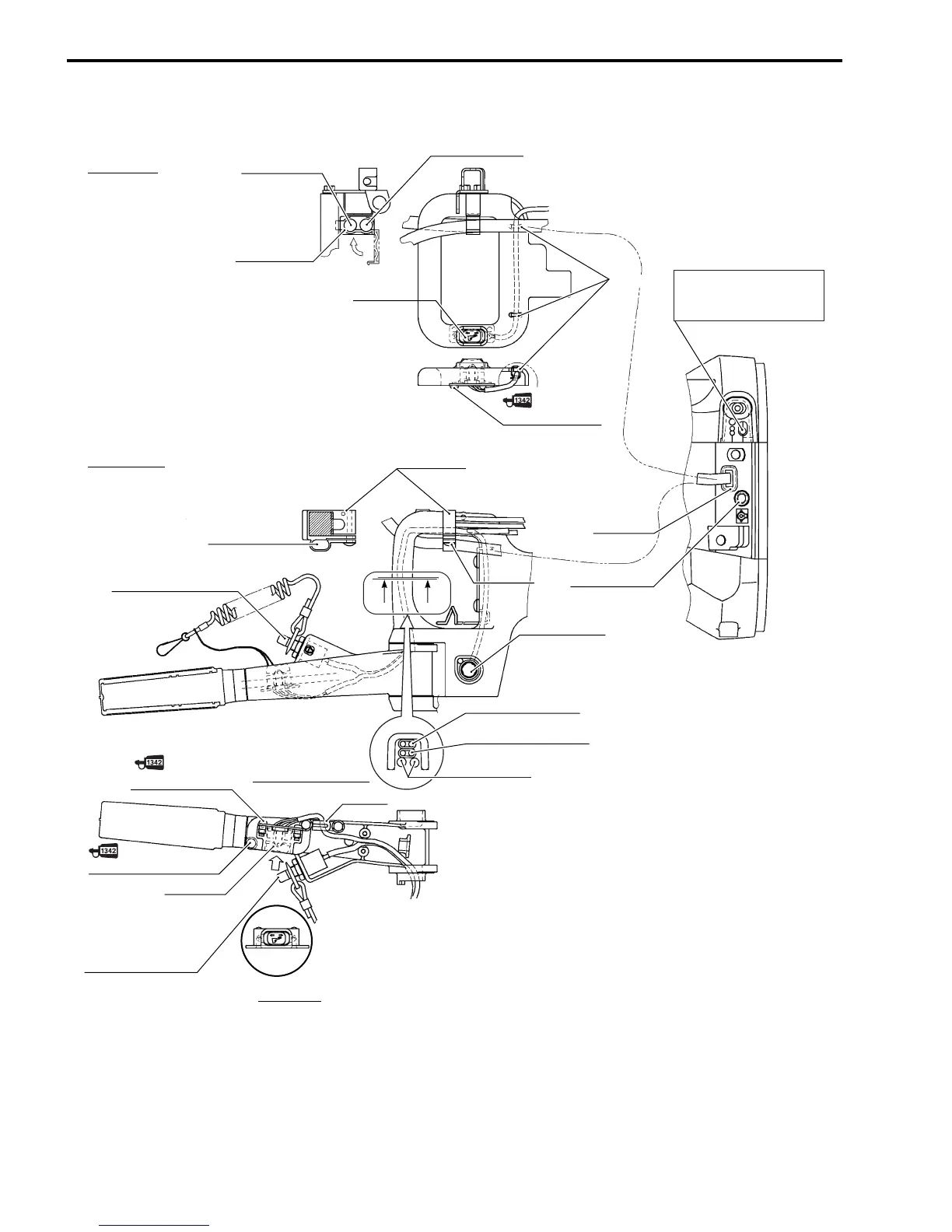

12-42 DF9.9T/TH “K8” (’08) MODEL
DF9.9T
DF9.9TH
Section B – B
VIEW Y
Y
Grommet
Screw
Caution lamp
Emergency & engine
stop switch lead wire
Emergency &
engine stop switch
Cable clamp
PT switch
PT switch screw
Battery cable
Cable clamp
Throttle cable
Clamp
PT switch lead wire
Battery cable
BB
The lead wire of each
switch is passed through
this hole.
Starter button
Wiring harness
Emergency &
engine stop switch
PT switch
PT switch bracket bolt
Cable tie
PT switch screw
