2-20 PERIODIC MAINTENANCE

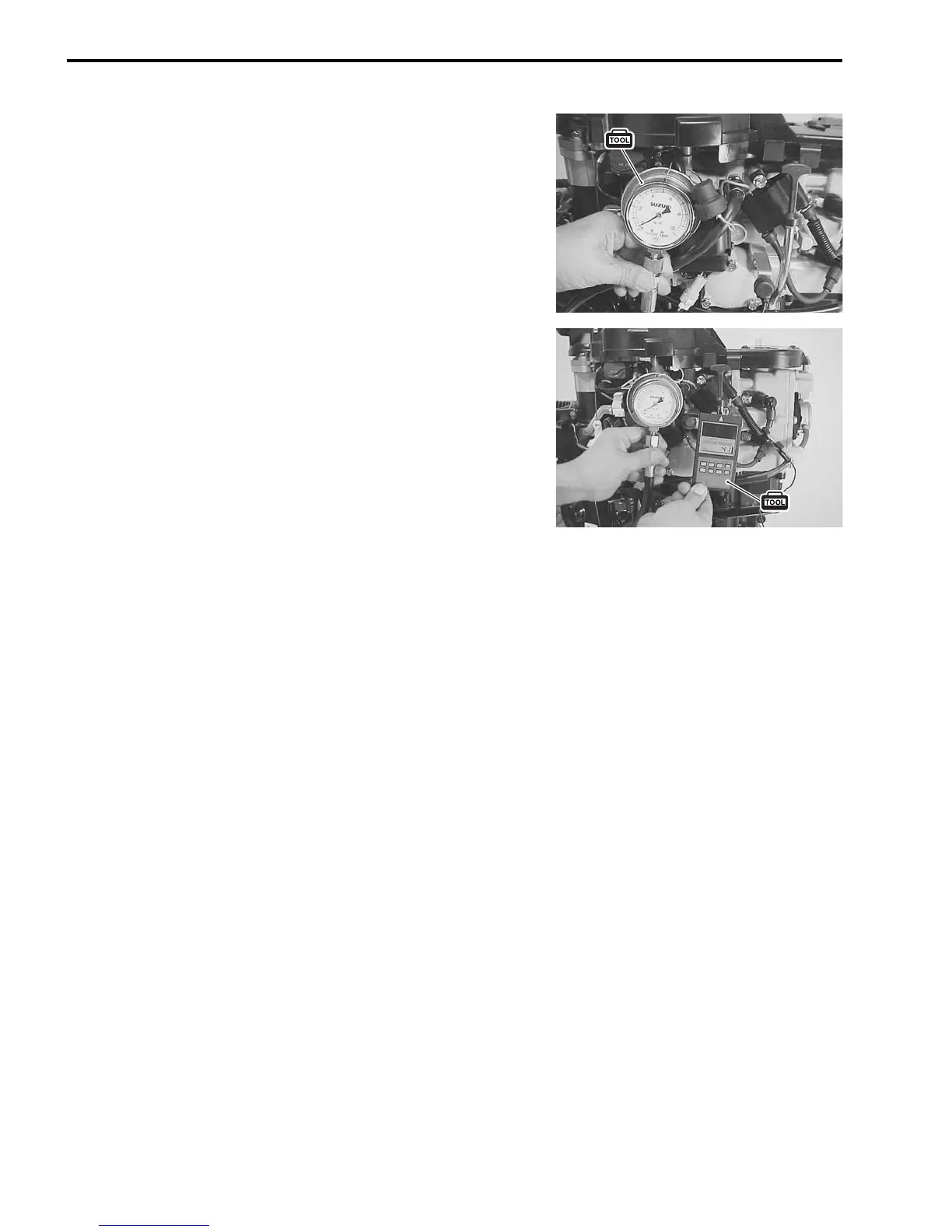

6. Install oil pressure gauge adaptor into oil pressure switch
hole in place of oil pressure switch.
09915-77311: Oil pressure gauge
09915-78211: Oil pressure gauge adapter
7. Place CDI unit in position.
Install ignition coil, then secure with bolts.
8. Attach the engine tachometer to ignition coil high-tension
cord.
09900-26006: Engine tachometer
9. Start engine and allow to warm up as follows:
Summer : 5 min. at 2 000 r/min
Winter : 10 min. at 2 000 r/min
10. After warming up, shift into forward gear and increase
engine speed to 3 000 r/min, then compare pressure indi-
cated on gauge to specifications.
11. After testing, reinstall oil pressure switch.
(See page 3-17.)
