3-32 IGNITION AND ELECTRICAL

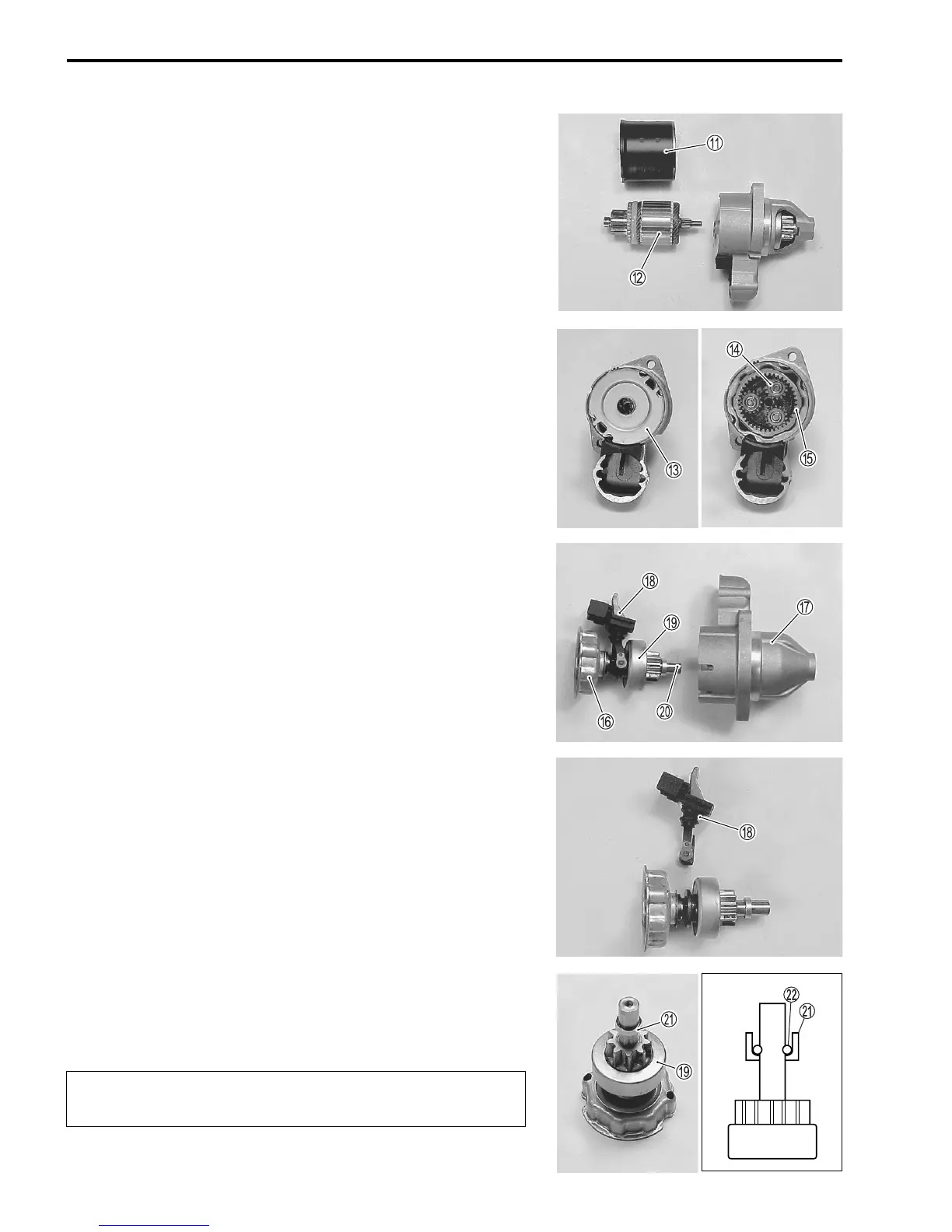

7. Remove the yoke A and armature B.
8. Remove the center cover plate C.
9. Remove the planetary gears D and internal gear E.
10. Remove the center bracket F (with shift lever H, pinion I
and pinion shaft J) from front housing G.
11. Remove the shift lever H.
12. Push the pinion stopper K down, then remove stopper ring
L.
Remove the pinion stopper and pinion I.
NOTE:
Using a screw-driver, pry off the stopper ring.
Wear safety glasses when disassembling and assem-
bling stopper ring.
