IGNITION AND ELECTRICAL 3-35

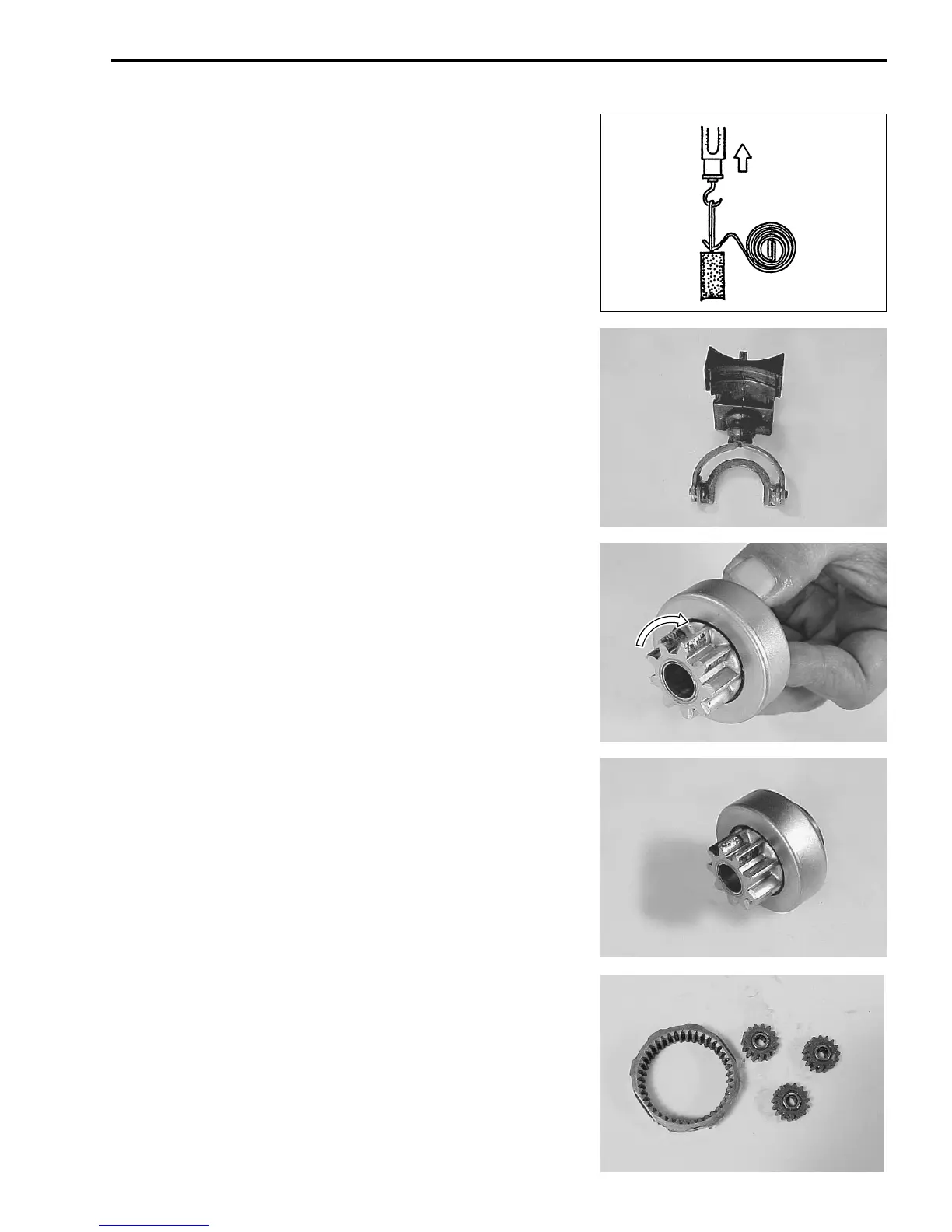

BRUSH SPRING
Inspect brush spring for wear, damage or other abnormal condi-
tions.
Check the brush spring tension.
Replace if necessary.
Brush spring tension
Standard: 15 – 18 N (1.5 – 1.8 kg, 3.3 – 4.0 lb)
SHIFT LEVER
Inspect shift lever for wear.
Replace if necessary.
PINION AND OVER-RUNNING CLUTCH
• Inspect pinion for wear, damage or other abnormal conditions.
Check that clutch locks up when turned in direction of drive
and rotates smoothly in reverse direction.
Replace if necessary.
• Inspect spline teeth for wear or other damage.
Inspect pinion for smooth movement.
Replace if necessary.
GEAR
• Inspect planetary gears and internal gear for wear, damage or
other abnormal conditions.
Replace if necessary.
