Suzuki RM-Z450 - Installation

ELECTRICAL SYSTEM 15-18

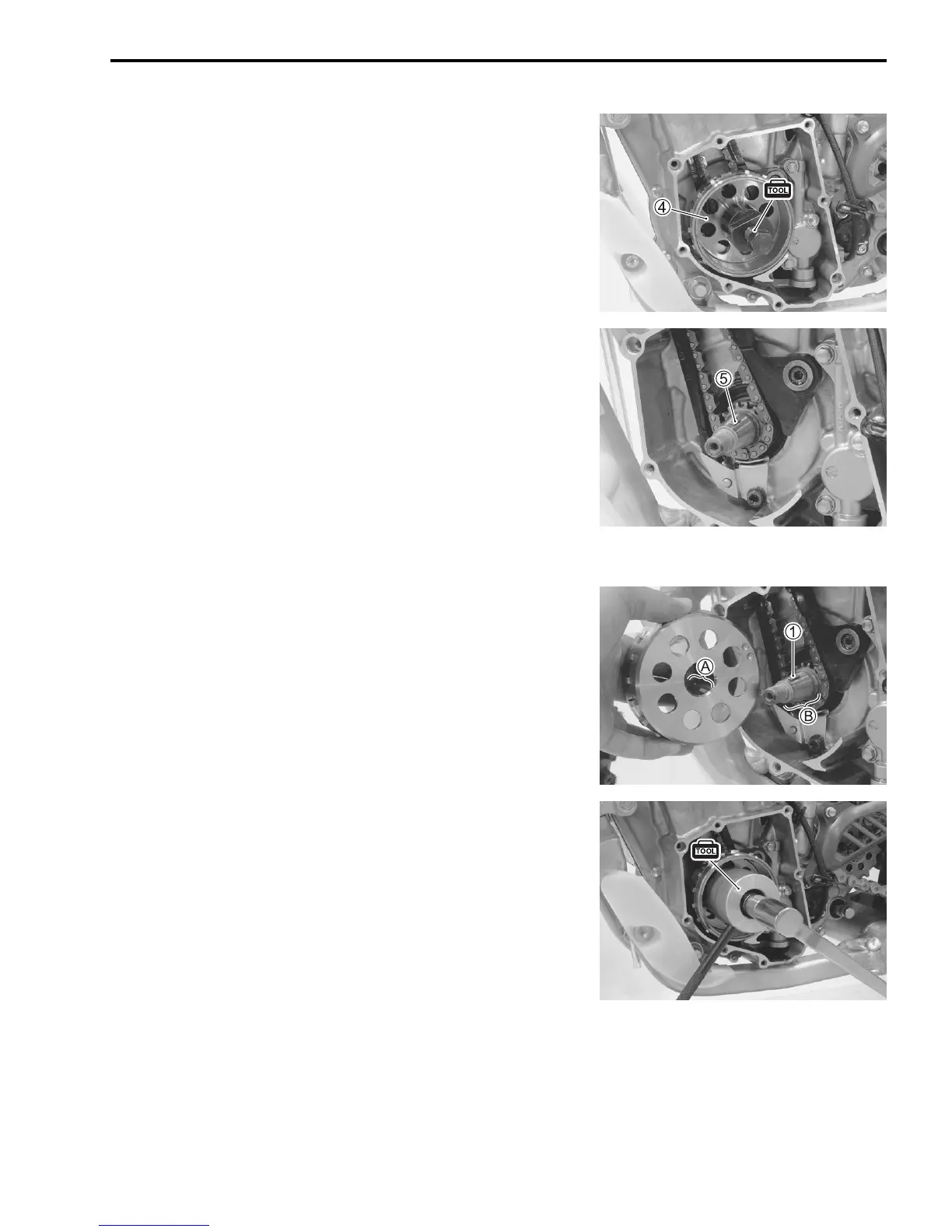

• Remove the magneto rotor

4 with the special tool.
" 09930-34951: Rotor remover
• Remove the magneto rotor key

5.
INSTALLATION
• Remove any grease from the tapered portion

A of the mag-
neto rotor and crankshaft

B.
• Fit the magneto rotor key

1 to the crankshaft.
• Install the magneto rotor.
• Tighten the magneto rotor nut to the specified torque with the
special tool.
+ Magneto rotor nut: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
" 09930-44560: Rotor holder
