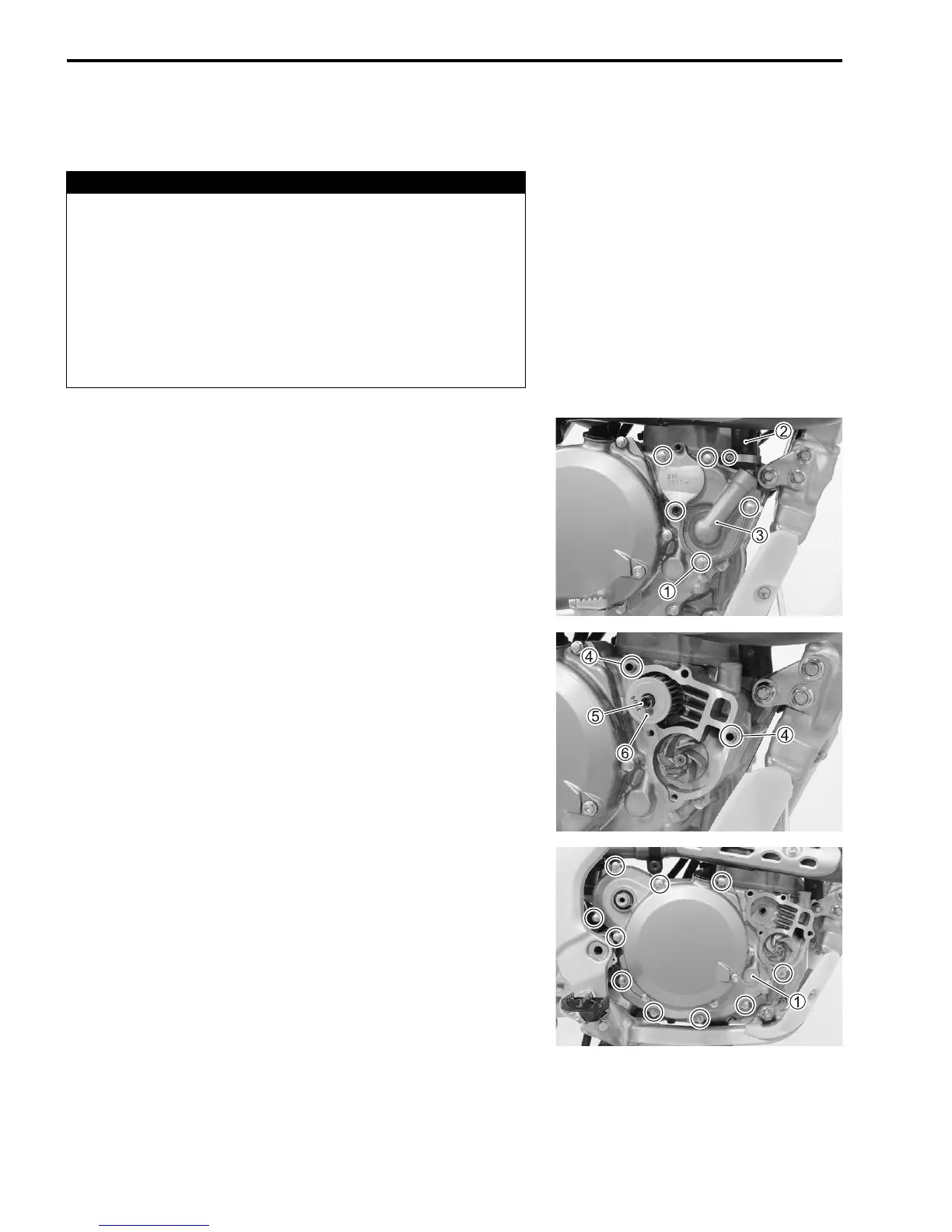

14-7 COOLING SYSTEM
WATER PUMP
REMOVAL
WATER PUMP CASE
• Drain engine oil. ("2-11)
• Drain engine coolant by removing the drain bolt

1.
• Disconnect the radiator hose

2.
• Remove the water pump case

3.
• Remove the dowel pins

4, spring

5 and oil filter

6.
CRANKCASE COVER
• Remove the brake pedal. (" 17-18)
• Remove the kick starter lever. ("8-3)
• Remove the right crankcase cover

1, dowel pins, gasket and
O-ring.
$ WARNING
Engine coolant may be harmful if swallowed or if it
comes in contact with the skin or eyes. If engine cool-
ant gets into the eyes or contacts the skin, flush the
eyes or wash the skin thoroughly, with plenty of water.
If engine coolant is swallowed, induce vomiting and
call a physician immediately.
The engine must be cool before servicing the cooling
system.
