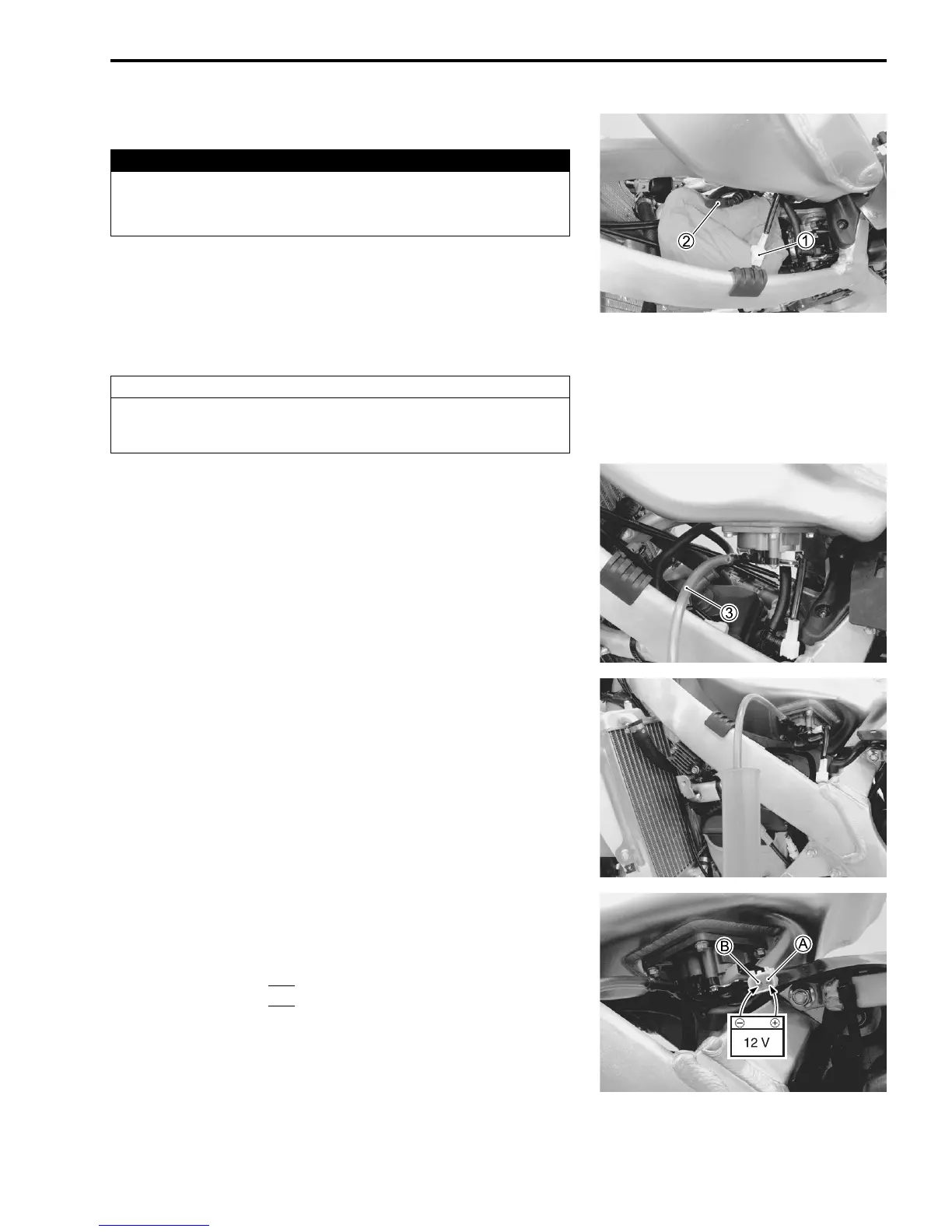

FUEL SYSTEM AND THROTTLE BODY 13-6
FUEL DISCHARGE AMOUNT INSPECTION
• Remove the seat and radiator covers. ("5-2)
• Remove the fuel tank bolt and rubber band. ("13-2)
• Lift and hold the fuel tank.
• Disconnect the fuel pump coupler

1.
• Place a rag under the fuel hose and disconnect the fuel hose

2 from the fuel pump.
• Connect a proper fuel hose

3 to the fuel pump.
• Place the measuring cylinder and insert the fuel hose end into
the measuring cylinder.
• Connect a proper lead wire into the fuel pump coupler (fuel
pump side) and apply 12 volts to the fuel pump (between ter-
minal

A and terminal

B) for 10 seconds and measure the
amount of fuel discharged.
Battery

+ terminal terminal

A (Red wire)
Battery

- terminal terminal

B (Black wire)
If the pump does not discharge the amount specified, it means
that the fuel pump is defective or that the fuel filter is clogged.
Replace the fuel pump assembly.
& Fuel discharge amount:
98 ml (3.3/3.5 US/Imp oz) and more/10 sec.
NOTE:
The battery must be in fully charged condition.
! WARNING
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
CAUTION
Be sure to disconnect the fuel hose

2 by your hand.
You may not disconnect the fuel hose

2 with any tool.
