Suzuki RM-Z450 - OIL PUMP No.1 and No.2 INSPECTION

LUBRICATION SYSTEM 11-6

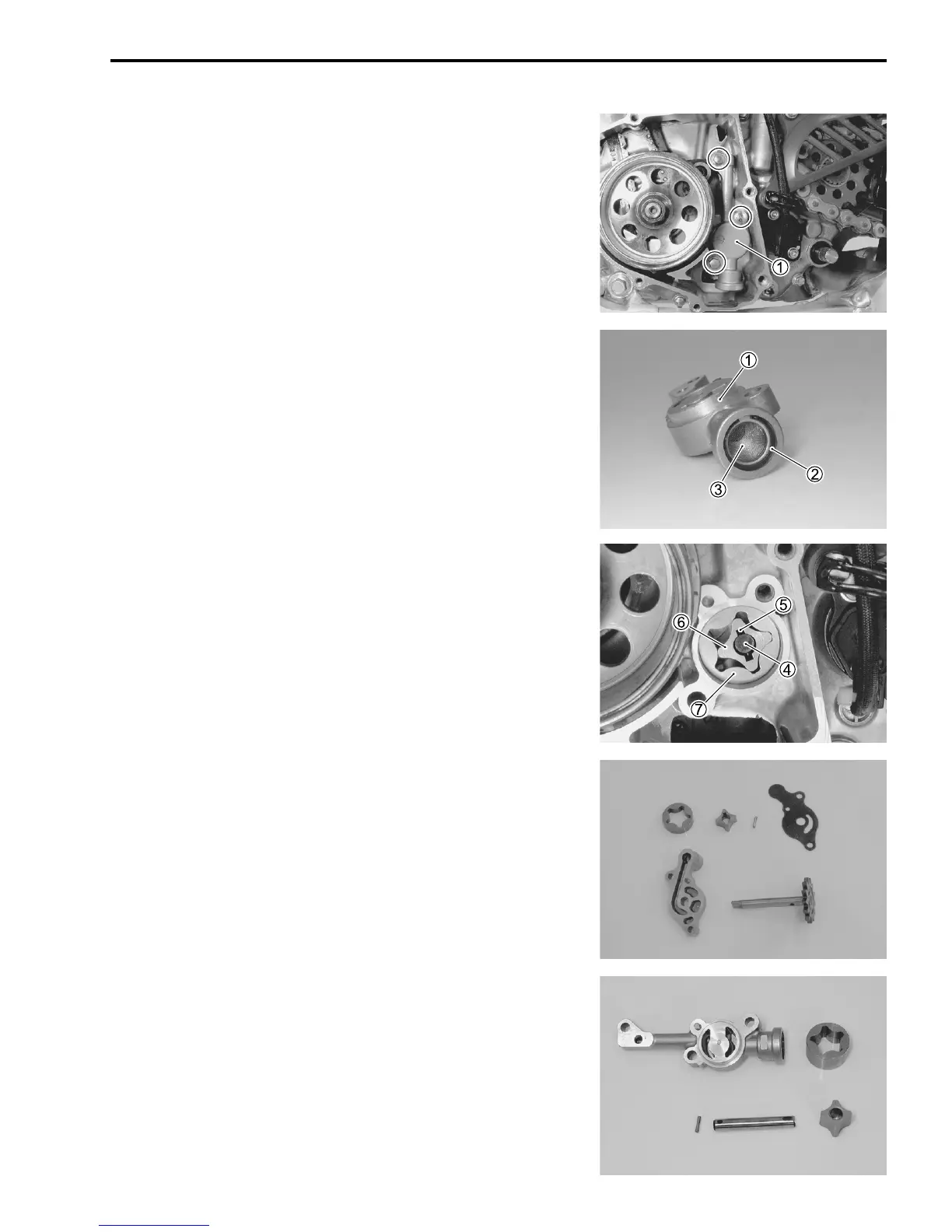

OIL PUMP No.2
• Drain engine oil. (!2-11)
• Remove the gearshift lever. (!9-3)
• Remove the magneto cover. (!15-17)
• Remove the oil pump No.2 cover

1.
• Remove the snap ring

2 and oil strainer No.2

3 from the oil
pump No.2 cover

1.
"
09900-06108: Snap ring pliers
Oil strainer inspection (!2-13)
• Remove the oil pump No.2 shaft

4, pin

5, inner rotor

6 and
outer rotor

7.
OIL PUMP No.1 AND No.2 INSPECTION
• Check the oil pump with each part for any defects or wear.
• If necessary, replace the defective parts with a new one.
