Suzuki RM-Z450 - Brake Pedal; Removal; Installation

FRONT AND REAR BRAKES 17-18

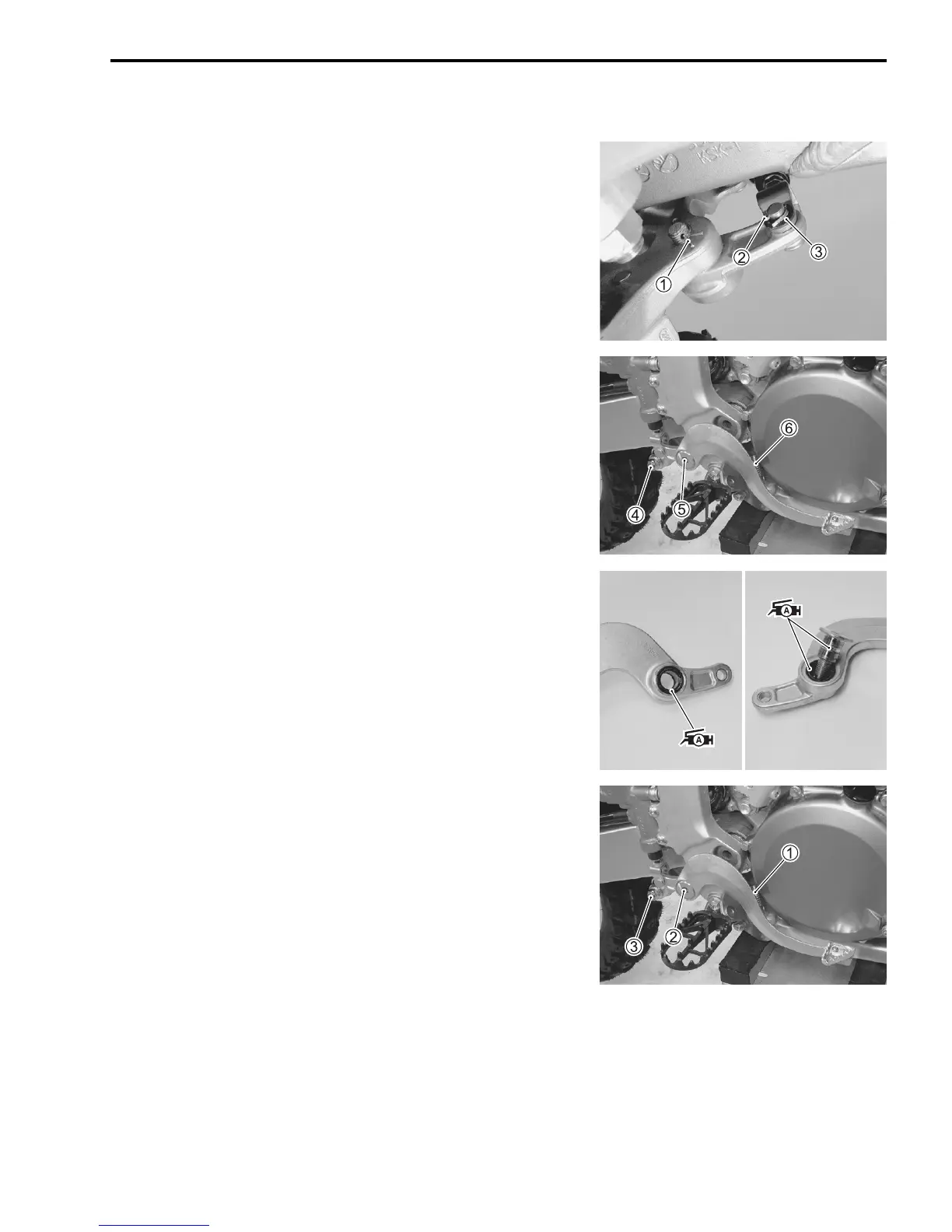

BRAKE PEDAL
REMOVAL
• Remove the clip

1.
• Remove the cotter pin

2 and washer

3.
• Remove the master cylinder rod pin

4.
• Remove the brake pedal pivot bolt

5 and return spring

6.
INSTALLATION
• Apply grease to the oil seals and brake pedal pivot bolt.
( 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the return spring

1 properly. ($20-23)
• Tighten the brake pedal pivot bolt

2 to the specified torque.
# Brake pedal pivot bolt: 29 N·m (2.9 kgf-m, 21.0 lb-ft)
• Install the clip.
• Install the master cylinder rod pin

3, washer and new cotter
pin.
• Adjust the brake pedal height. ($2-31)
