8. V-BELT DRIVING SYSTEM
8-11

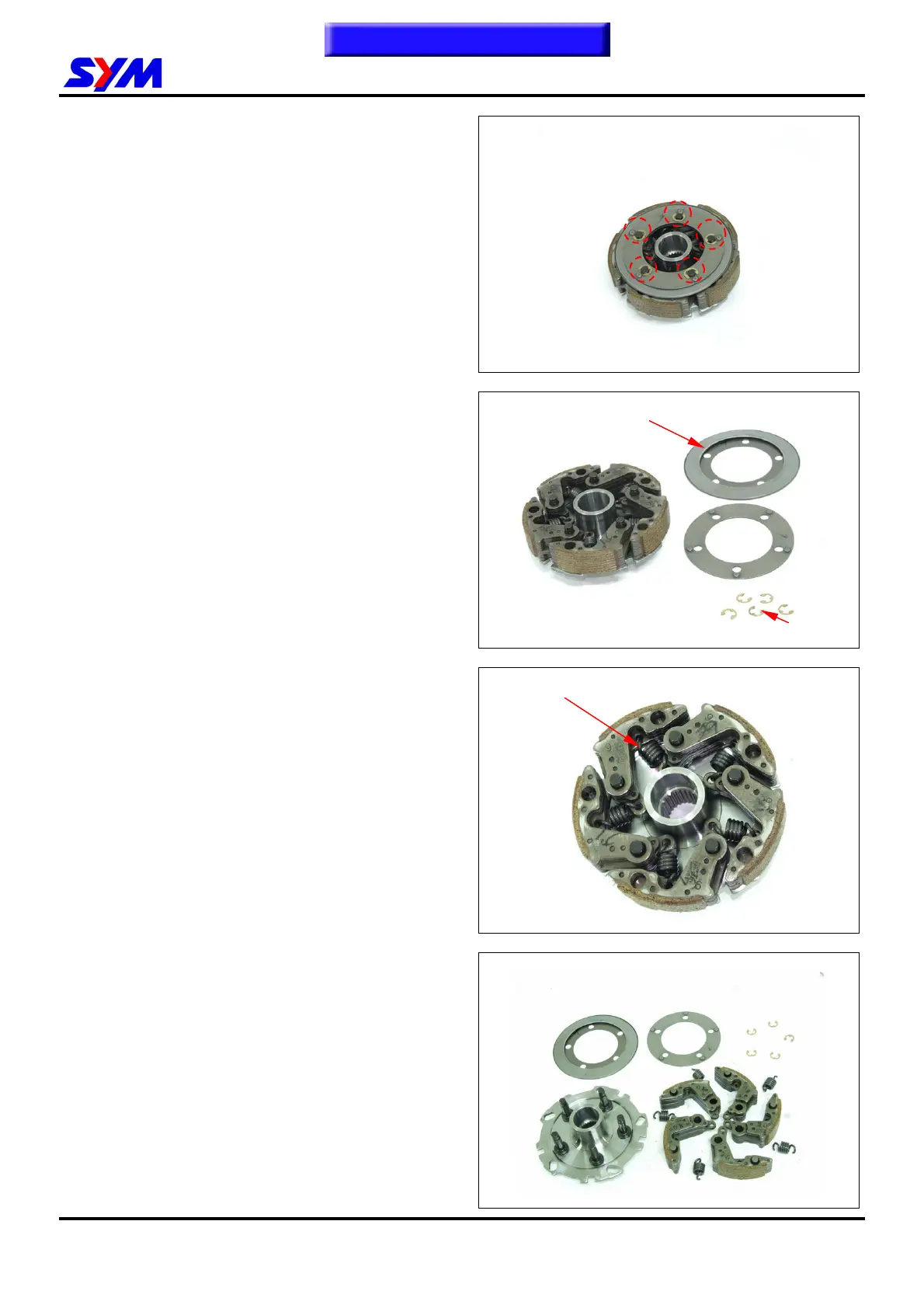

Drive plate Disassembly
Remove 5 e-ring from drive plate.
Remove the spring plate and centrifugal clutch
plate.
Remove 5 springs from the drive plate
Check if spring is damaged or insufficient
elasticity.
Remove 5 clutch weights.
Check if spring is damaged or insufficient
elasticity.
Spring
centrifugal clutch
lt
e-ring
