Technogym Run Excite 700 - Assembling a New Encoder

RUN EXCITE: Service & Maintenance Manual - rev. 1.5
7.14.2.1. Reassembling the same encoder

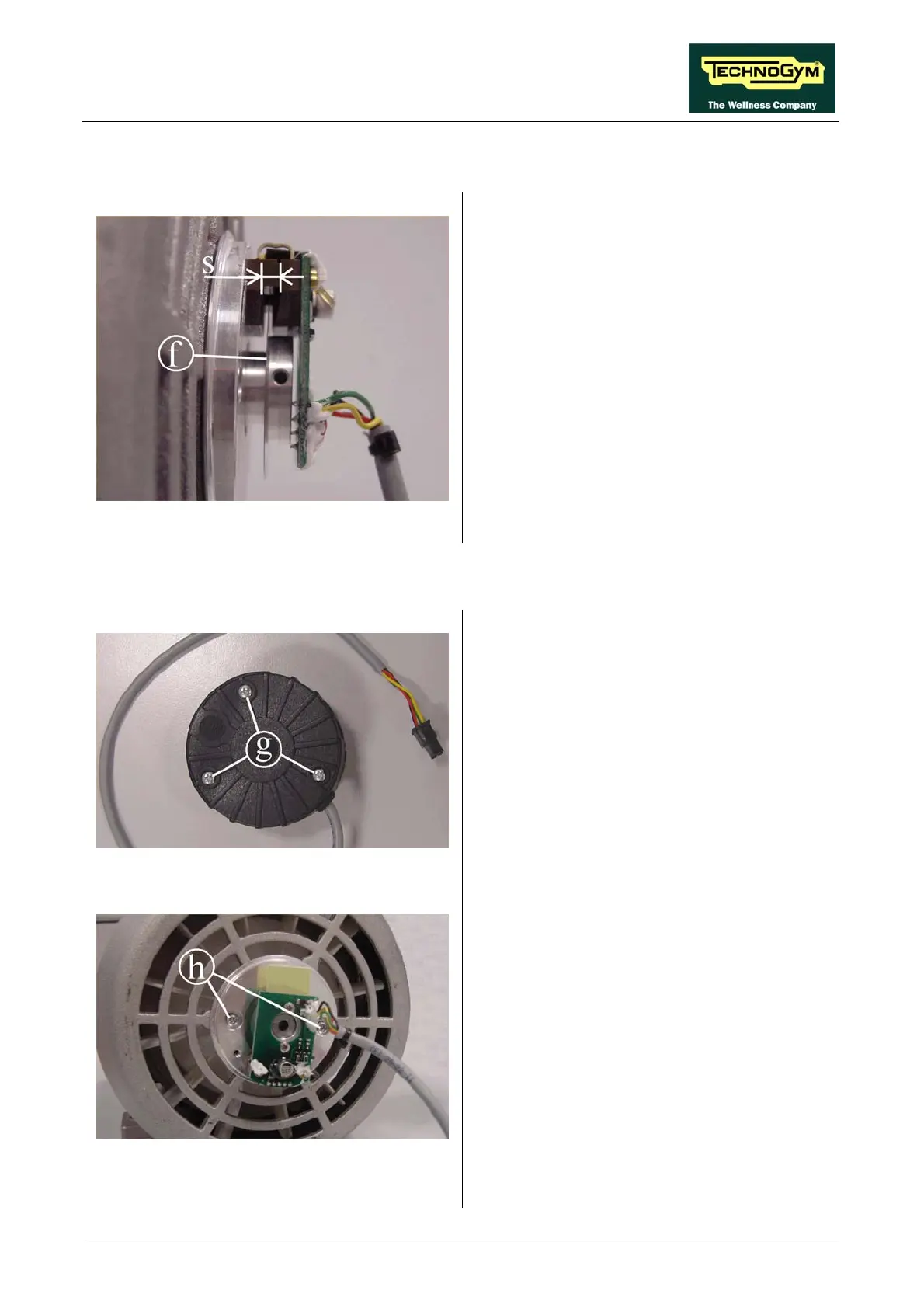

Figure 7.14-7
o reassemble the encoder removed previously:
1.
d by dimension
s in the figure.
Com embly by carrying out the
7.14.2.2. Assembling a new encoder
T
Fix the wheel f so that it is at the centre of
the detection region, indicate
plete the reass
above steps in reverse order.
Figure 7.14-8
To assemble a new encoder:
. Back off the 3 screws g using a small Phillips
screwdriver and remove the plastic cover.
1
Figure 7.14-9
2. Using a 2.5-mm hex wrench, fix the encoder
to the motor using the two screws h.
Continued on following page →
Page 7.27
