6.2. TROUBLESHOOTING SERVICE MENU FOR 500 MODEL
This section can be used to test the operation of certain machine components (AC/DC Motors, LED
display, keyboard, serial ports, inverter). It is invoked, when the machine is in standby mode, by
simultaneously pressing the keys ENTER, ↑, CLEAR. The following prompt appears on the LED
display:
ENTER PASSWORD:
To access the procedure, insert the password 2501 which protects against unauthorized access and
press ENTER to confirm. To enter the password without the numeric keypad, enter one digit at a
time using the ↑ and ↓ keys to change the value and the +/- GOAL keys to scroll to the next
character. At this point there are two options available:
↑ = Tech Config
↓ = Troubleshooting

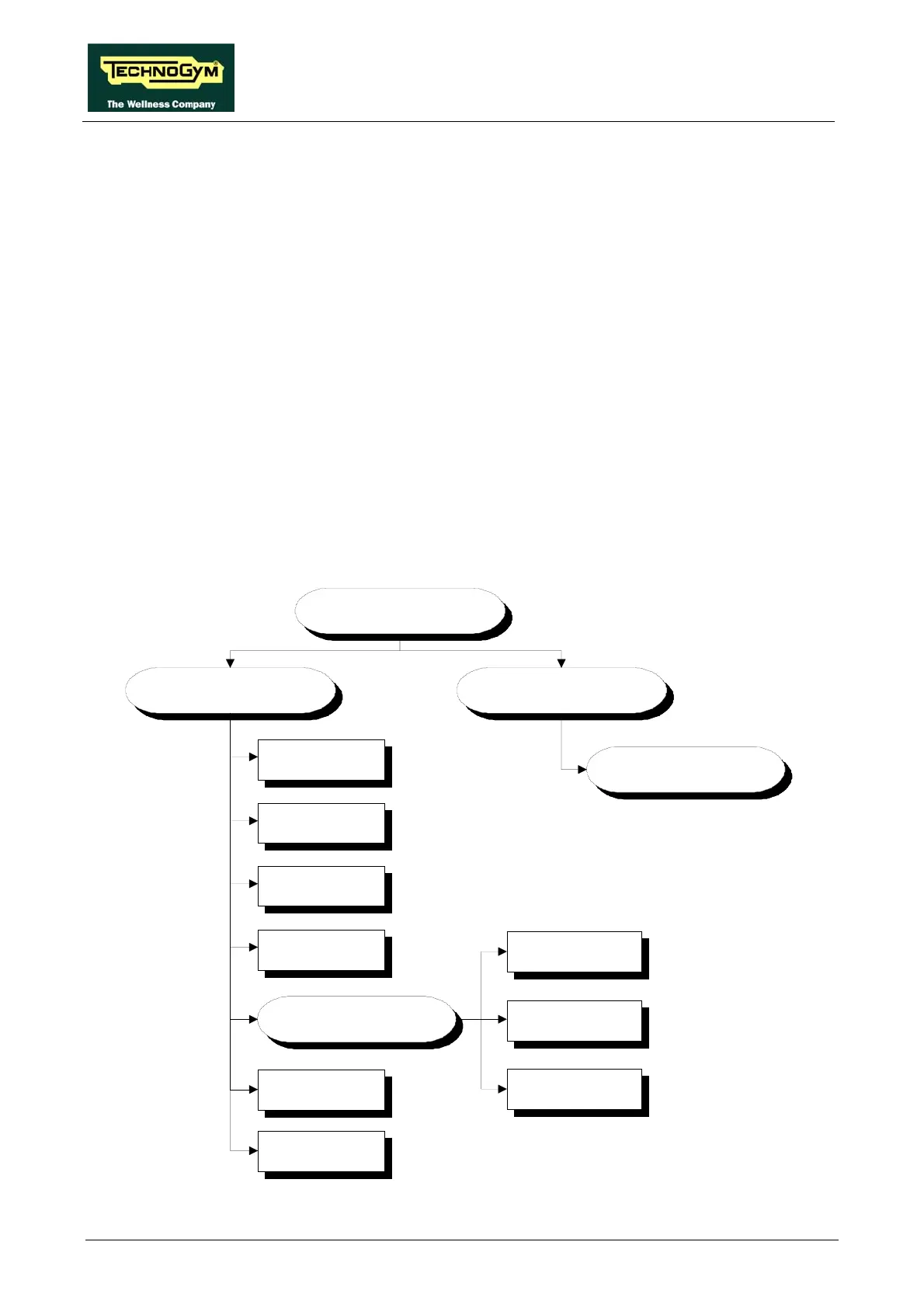

Press the number key 2 to access the troubleshooting menu, which is structured as shown in the
figure below.
TROUBLESHOOTING
AUTOMATIC T
I2C Devices Test
EST MANUAL TEST
MAN.KEYBOARD
TEST
CSafe COM Test
UpDown Test
Inverter Test
LED Test
TGS COM Test
SERIAL PORTS
TEST
Low Kit COM Test
Test Result
Reset Result
To Next Page
