RUN EXCITE: Service & Maintenance Manual - rev. 1.5
4.6.1. INSTALLATION PROCEDURE

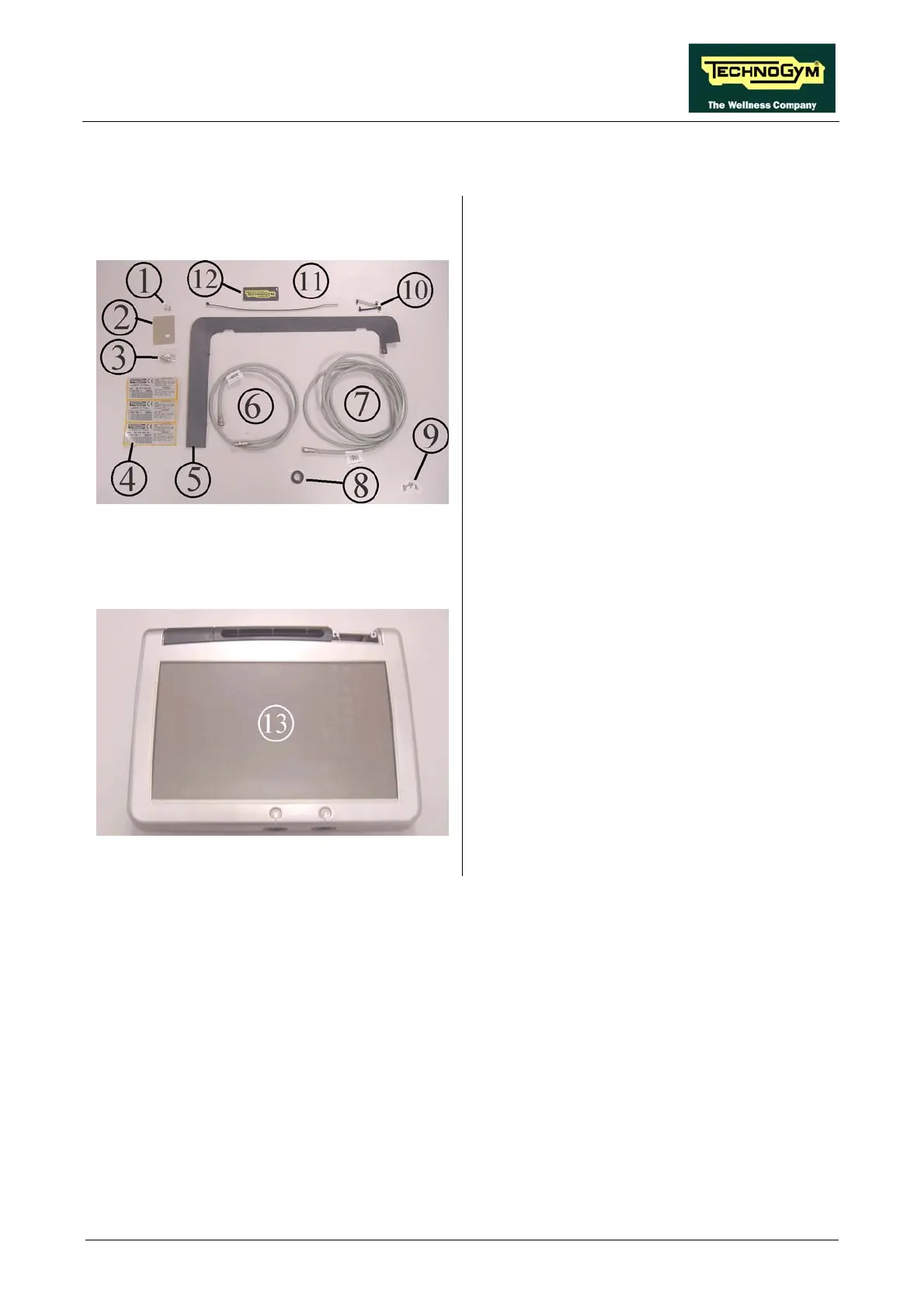

Figure 4.6-1
The upgrade kit consists of:
(1) Self-tapping screws (cod. 0Z755);
(2) Antenna cable clamping plate
(cod. 0D001627AA);
(3) Antenna union connector
(cod. 0K000303AA);
(4) Code sticker (cod. 0E109);
(5) Frame for back of display
(cod. 0C000504AA);
(6) TRM-47 cable (cod.0WC00445AA);
(7) TRM-46 cable (cod.0WC00444AC);
(8) Rubber cable holder (cod. 0G081);
(9) Screws (cod. 0Z733);
(10) Cable clamp (cod. 0V2278);
(11) Cable tie (cod. 0V2273);
(12) Technogym logo sticker
(cod.0E000344);
Figure 4.6-2
(13) 15-inch LCD display assembly.
Page 4.5
